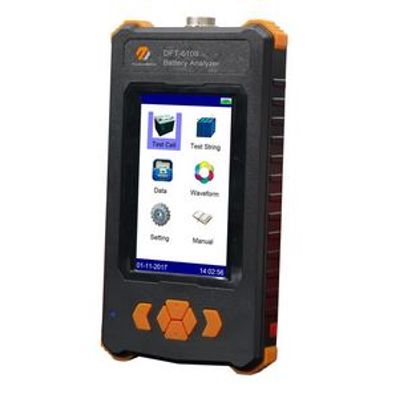

Thomson - Model DFT-6108 -Battery Analyzer

FromThomson Tech Co Ltd.

SHARE

DFT-6108 battery analyzer adopts the international leading multi-frequency point testing technology to accurately test battery voltage, current, impedance, ohmic resistance, polarization resistance, electrode double layer capacitance and other battery characteristic parameters, which can be used for power, communication and battery factory to test and analyze the battery, and can also be used for the analysis and research of batteries in universities, research institutes and laboratories.

Most popular related searches

rechargeable lithium battery

battery testing

lithium battery

battery testing system

power management software

battery discharge

Using the international leading multi-frequency point test technology, battery voltage, current, impedance, ohmic resistance, polarization resistance, electrode double layer capacitance and other battery characteristics can be accurately measured.
High degree of automation by manual testing and automatically testing in the set time interval.
High test accuracy for the battery. Characteristics testing
Strong anti-interference ability for battery online testing of battery charging and discharging process test.
Large storage capacity for continuously store multiple consecutive measurement data.
The tester is simple to operate and easy to use.
Equipped with powerful computer analysis and management software, you can analyze and manage the test data, and can automatically generate corresponding reports.
The tester design is small, light weight and easy to carry.
The tester program can be customized and updated according to user needs.
LCD screen for key operation and touch-screen operation of customers choose.

Item Parameters
Measuring range

Resistance:0.00mΩ--100mΩ
Voltage:0.000V—20V
Capacitance:0.0F—10000F

Resolution

Resistance:0.001mΩ
Voltage:1mV
Capacitance:0.1F;

Accuracy

Resistance:±1.0%rdg±6dgt
Voltage:±0.2%rdg±6dgt
Capacitance:±1.0%rdg±6dgt

Working power supply
4000mAH rechargeable lithium battery,
full can work for 8~ 12 hours
Memory capacity Stores 100,000 battery measurement data
Display 4.3" TFT-LCD touch screen 272×480
Host Size 186mm×98mm×40mm
Host Weight 0.45KG
External power supply AC100~240V/DC5V-1A power adapter/charger
Communication interface USB interface (pluggable U-disk)
Operating temperature -10?--50?
Humidity less than 85%RH
