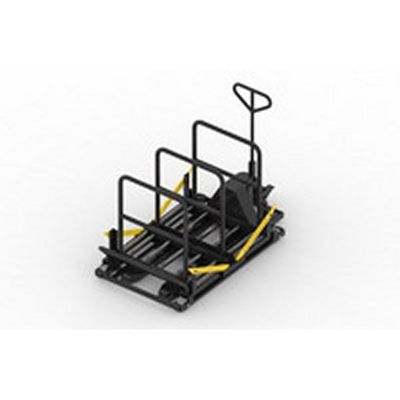

HOPPECKE trak - Model Xchange TU Series -Battery Changing Trolleys System
The HOPPECKE battery changing trolleys trak | Xchange TU series are suitable for small batteries from 12 V to 24 V. They have been specially developed for electric pallet trucks and low-lift order pickers with lateral battery change on roller bearings.
Benefit from the advantages of the trak | Xchange TU, which is equipped with a double roller conveyor and thus enables a quick battery change. All trak | Xchange TU systems run on floor mounted rails to ensure easy movement of the trolley. At the same time the safe transport of the battery is ensured by a locking device.
- Low exertion of force - assisted height adjustment according to type
- Flexible use - suitable for vehicles with different battery changing heights
- Easy to operate - battery changing carried out directly by the truck driver
- Cost-saving solution - only one person needed for battery changing (usually the truck driver)
- Compact and space-saving design - no extra slot for the spare battery needed
- Quasi continuous truck utilization - battery change within approx. 2 minutes
- Fleet (one changing unit for up to 20 batteries)
- Preferred battery sizes: 12 V to 48 V
- Centralised and decentralised battery changing stations
The version trak | Xchange TU-PT is equipped with a special lifting mechanism, which allows a height adjustment of 110 mm.
The trak | Xchange TU-HY has a hydraulic height adjustment device. Due to the large adjustment range, all vehicle types and changing heights for 12 V to 48 V batteries can be changed by means of trak | Xchange TU-HY. The abrasion of the vehicle tyres is compensated in the system by the height adjustment of the roller bed.
- Individual use for all trucks with lateral change for 24V batteries
- Simple and intuitive and user/ friendliness handling
- Space savings by using a second roller bed on the TU change car
- Long service life thanks to stable and modular metal construction
