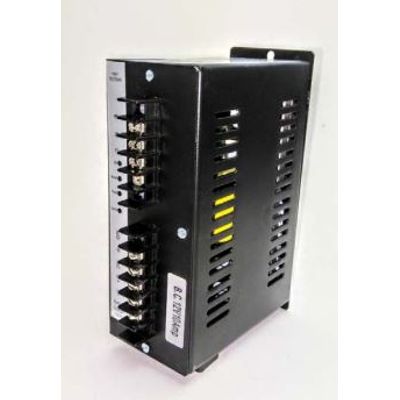

Battery Charger : 12V 10A

Input Voltage 150 - 275 V AC
Output voltage
Float Mode 12.2 V DC
Boost Mode 14.7 V DC
Output Charging current 10 amps
Operating Temperature 0 TO 70 DEG C

Input under voltage Cutoff level 140 VAC. Turn on voltage 160 VAC
Input over voltage 280 V AC units shuts off if voltage goes above this value
Output short circuit and overload  Battery reverse polarity Continuously protected
Annunciation Potential free NO /NC contact for charger On/ Fail indication
Indication Mains On, Float, Boost, and Battery Reverse
Ripple and noise 150 mv p-p
Isolation between: Input & Output 2000 V AC
Input & Earth 1500 V AC
Output & Earth 1500 V AC
Dimensions: L*B*H 170*120*60 mm
Mounting Wall mounting type
