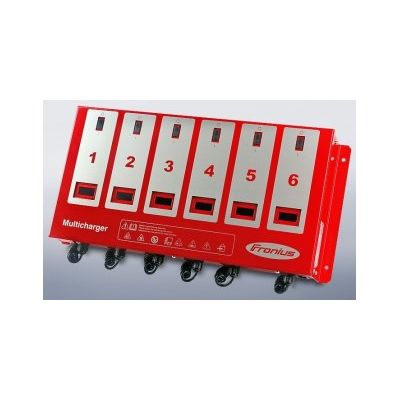

Fronius - Model ACCTIVA Multicharger -Battery Charging System

Overview
Product information:

• For charging or charge conservation of conventional lead acid, lead calcium/silver batteries, or those of the sealant type (AGM, MF), as well as maintenance-free lead GEL batteries
• Batteries of various types, with different levels of charge, can be charged simultaneously
• Each individual charging circuit can be used for testing and charging
• Indication of battery charge status using bar charts in the display
• Charging of deeply discharged batteries possible
• Compact design thanks to primary switched mode power electronics
• Based on Active Inverter Technology, all processes are microprocessor-controlled
• Simple wall-mounting

Technical Data
ACCTIVA Multicharger    Multicharger 6-fold
Nominal charging voltage: 12 V
Charging current: 4 A
Battery capacities: 3 - 110 Ah
Mains voltage: 100 V - 230 V +/- 15 %
Charging characteristic: IUoU
Marks of conformity: CE / TÜV North America / TÜV PSE (Japan) / TÜV NSW (Australien)
Spiral battery charging lead: approx. 1.9 m (stretched)
Final charge voltage per charge circuit: 13,5 - 14,4 V
Dimensions (L x W x H): 584 x 288 x 98 mm
Weight: 7,1 kg

Equipment features

Applications:

• Charging: The ACCTIVA Multicharger charges batteries fully automatically and gently until they reach their maximum capacity. After charging, the charger automatically switches over to conservation charging in order to avoid self-discharge.
• Testing: The ACCTIVA Multicharger uses the measured open circuit voltage to determine the level of charge and the startability of the battery.
• Replacing: If the vehicle’s battery is removed or replaced, stored data (e.g. radio, clock, etc) is retained. The Acctiva Multicharger temporarily replaces the battery as the power supply unit.

Protective features:

• Electronic reverse polarity protection
• Thermal overload protection
• Safety cut-out
• Electronically safe
• Short-circuit protection
