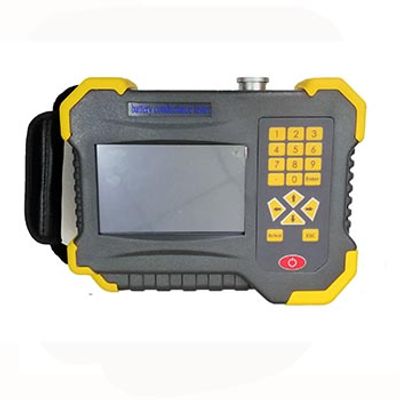

OREN - Model OR-20 - Battery Conductance Tester
The Battery Conductance Tester from Oren Electrical Technology Co., Ltd. features an intuitive color touch screen that can be operated with ease using either a finger or a stylus. This portable device provides rapid and accurate data regarding battery voltage and conductance, and it offers the ability to store and process this data directly on the instrument. Alerts for any battery failures are immediate, ensuring reliability and safety. Moreover, users are able to inspect, download, and delete data directly on the device. The accompanying PC software can display detailed analyses, ensuring comprehensive battery management. Key functions of the tester include online testing of battery voltage, conductance, and connection strip resistance, with alarms for out-of-range values and parameters marked for easy management. The oscilloscope function displays the highest, lowest, and average voltages. High precision online testing and automatic range switching between 0.000-19990S ensures flexibility and accuracy. The device can store data for up to 999 battery groups and is capable of testing battery capacities ranging from 5AH to 6000AH. It boasts a 5-inch color touch LCD screen, a rechargeable 11.1V, 2400mAh lithium battery, and an 8-hour continuous operational battery life, housed in a compact design weighing 1.1Kg.
This battery conductance tester is utilized color touch screen. It can be operated via finger or the touch pen with convenience and flexibility. It is portable and the data can be known soon exactly. This instrument can store and process data of battery voltage and battery conductance. It will alarm for any battery failure. We can check data, download data and delete data on the instrument. Software in PC can display
- Test the battery voltage, conductance and connecting strip resistance online
- Battery Conductance and Voltage out of range alarm
- Battery parameters are marked by group No. to data management expediently.
- PC analysis software to realize record and follow up battery condition
- Oscilloscope function: indicate the highest, lowest and average voltage
- High precision online testing, full automatically switch the testing range
- Automatically range switching between 0.000-19990S
- Storage 999 group testing data ( each group 999 battery at most )
- Storage 500 groups battery setting parameters
- Battery capacity testing range : 5AH-6000AH
- Testing Range : Conductance :100~19,990S Voltage 0.000V--25V
- Measurement Resolution : Conductance: 1S Voltage:1mV
- Precision : Conductance:±0.5%rdg ±6dgt
- Voltage:±0.2%rdg ±6dgt
- Power Supply : 11.1V,2400mAh, rechargeable lithium
- Battery Life : Work for 8 hours continuously
- Storage : 64Mbit Flash+ 4GSD
- Display : 5 Inch color touch LCD screen
- Size : 220 x 170 x 52mm
- Weight : 1.1Kg
- Humidity : 90% RH
