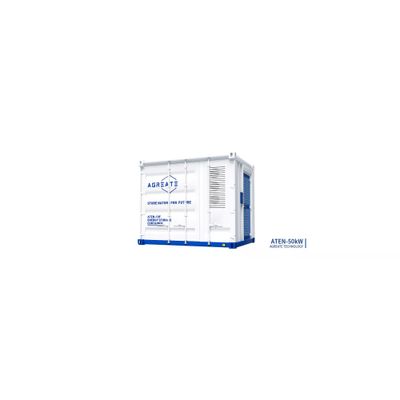

ATEN - Model 50kW BESS -Battery Energy Storage System
The ATEN 50kW BESS (Battery Energy Storage System) is an all-in-one system built around a 50 kW power conversion system designed for either grid connected or totally off grid applications. The ATEN-50 offers light commercial customers turn key energy storage systems that are designed for 10+ years of hassle free energy generation and usage. It comes in three capacity sizes: 64 kWh, 128 kWh, and 192 kWh. The ATEN 50kW pairs seamlessly with a number of different energy sources. Typically Solar, Grid, and Diesel Gensets are paired together to make mini-grid applications.
- The 50kW PCS Cabinet Contains a Hybrid 50kW PCS with 250V~520V DC Voltage
- The 192kWh Battery string is Converted to 400V AC through the 50kW Hybrid PCS, AC Power is Transferred to the Isolated Transformer Supporting the Loads
- The Battery String is Charged from the PV System 50kW DC/DC During Day Time Operation
- Power Supply will be Switch to DG by the ATS and STS Seamlessly Transferred to PCS when BESS and PV are Short of Supply
- Increased Self-Consumption/Self-Sufficiency from Solar plus Storage
- Commercial Centers and Malls looking to Offset Power Costs
- Hotels, Hospitals, Schools
- Frequency Regulation
- Demand Charge Reduction
- Backup Power/ Uninterruptible Power Systems
- PV + BESS + Charging Stations
- Clean Energy Minded Companies
- Small Micro-Grid Projects
The ATEN 50kW battery energy storage systems (BESS) contains the full battery system with battery management system and three phase power conversion system. Designed to seamlessly integrate with Solar, Wind, Grid, or Gensets, the ATEN 50kW is the building block to clean energy systems including On-Grid hybrid and Micro-Grid Systems.
