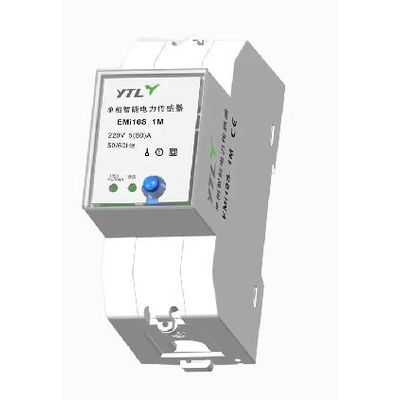

YTL - Model D119040 - Battery Energy Storage System - Two Way Metering Digital Single Phase Power Meter
EMi10S.1G-W is an intelligent single phase multifunctional sensing device, which integrates the functions of electric power measurement, switch control, safety alarm, energy consumption monitoring, timing task and so on. Rely on WIFI,RS485 communication, widely used in various electrical appliances, electronic mechanical equipment and effectively implementation of remote interconnection, safety prevention and control, fault prediction, preventive maintenance, energy saving and consumption reduction.
Most popular related searches
battery energy storage system
energy consumption monitoring
battery energy storage
energy storage system
energy saving
electricity meter
energy meters
energy consumption
energy meter
energy metering
- Voltage: 220V±10V
- Current: 5（80）A
- Accuracy class: Active0.5，Reactive 1.0
- Standard: EN50470-1/3
- Frequency: 50-60Hz
- Impulse constant: 1600imp/kWh
- Display: LCD5+1
- Power consumption: ≦10VA
- Starting current: 0.002Ib
- Temperature range: -10～45℃
- Flashing red: Impulse indication，width=80ms
- Average humidity value of year: ≦75%
- Communication: WIFI, RS485
- 2:L-IN、N-IN
- Switch button (manually turned ON/OFF)
- POWER
- Pulse indication
- L-OUT
- RS485 port
- This product requires experienced electricians or professionals, and make sure you have reading this user manual;
- During installation, if there is obvious damage to the shell caused by severe impact or drop, please do not install, power on, and promptly contact our company or distributors;
- This product is qualified by inspection and with lead seal before leaving the factory, and can be installed and used directly.
- This product should be installed in the indoor or outdoor energy meter box, fixed in the strong refractory wall, the air doesn’t have corrosive gas;
