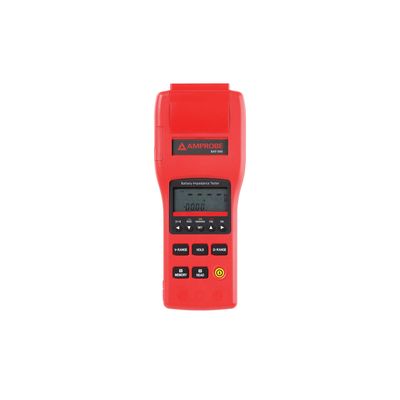

Amprobe - Model BAT-500 - Battery Impedance Tester up to 40 V
Amprobe BAT-500 Battery Tester quickly and accurately tests batteries without taking the batteries off-line. This Battery Tester features a comparator function with pass/fail indication, and speed testing of batteries up to 500 Ah. Amprobe BAT-500 Battery Tester, compact and light weight, simultaneously measures battery resistance and voltage up to 40 V.
- Tests battery Impedance to calculate its true life
- Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500 Ah
- Resistance measurement up to 40 ohms, and voltage up to 40 V
- Tests are performed without shutting down a battery
- Simultaneously measure battery resistance and voltage
- Comparator function to quickly access conditions as pass, warning, or fail
- 99 memory locations to store results with read function
- Compact and lightweight
- RS232 PC interface to download testing results to a PC for trending/life cycle analysis
Features: BAT-500
Maximum battery capacity: Up to 500 amp hours
Battery type: Alkaline, nickel-metal hydride (NiMH), nickel-cadmium (NiCd), lithium-ion (Li-ion) and lead-acid batteries
DC Voltage: 4.000 V, 40.00 V
Impedance: 40 mO, 400 mO, 4 O, 40 O
Data capture memory: 500 data sets
Data logging memory: 9600 data sets
Battery capacity: 0 to 500 AH
Resolution: 10 µO, 100 µO, 1 mO, 10 mO
Accuracy: ±(1%reading ±10digits)
Open circuit voltage: 3.5 V pp max
Measurement current: 25 mA approx., 2.5 mA approx., 250 µA approx., 25 µA approx
Measuring current frequency: 1 KHz ±10%
Voltage measurement range: 4 V, 40 V
Resolution: 1 mV, 10 mV
Accuracy: ±(0.1% rdg ±6 digits)
