Hefei Huasi System Co., Ltd.

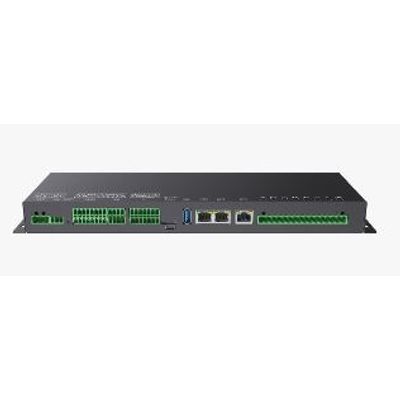

Huasi System - Model BSE1F - Battery Management System
Support 2000V voltage platform, 100,000+ full battery collection, SOX estimation, charge and discharge control protection, communication scheduling, support IEC104, Modbus, IEC61850 and other power protocols, and CAN communication with battery cluster
Most popular related searches
low voltage power
battery management system
battery stack
battery management
energy storage
energy storage component
battery system
battery monitor
battery monitoring
smart energy storage
Reliable
UL/IEC/CQC safety certification
Physical latching to adapt to extreme working conditions
Fire linkage control
Easy to use
One-click adaptive addressing
Rich peripheral resources
Flexible protocol conversion configuration
Intelligent
Multi-battery stack monitoring and management
One-click OTA upgrade for the entire site
Cloud-edge collaborative intelligent maintenance
- Parameter : BSE1F
- Low voltage power supply : Voltage range : 12/24V
- Working mode power consumption : ＜10W
- State estimation : SOC estimation : ≤5%
- SOH estimation : ≤8%
- Communication function : CAN : 3-Way
- RS485 : 6-way
- Ethernet : 3-Way
- USB : 1st Road
- Type-C : 1st Road
- Input and Output : Low-side switch output : 2-way
- Passive dry contact output : 6-way normally open
- 2-way closed
- Passive dry contact input detection : Route 12
- Data storage : size : 4GB+64GB (optional)
- Storage cycle : The default setting is 20 seconds for static and 10 seconds for charge and discharge
- Work Environment : temperature : -40~65℃
- humidity : 5~95% (no condensation)
- altitude : 4000m
