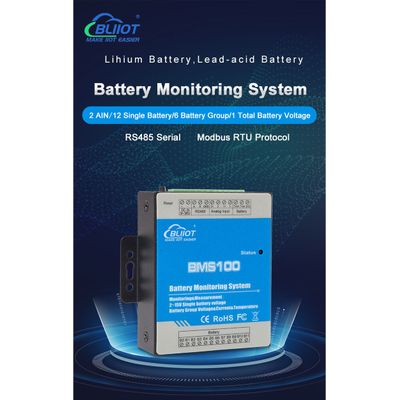

BLIIoT - Model BMS100 - Battery Pack Monitoring Module for Unmanned Rooms and Scenes

Battery pack monitoring module is specially developed for battery pack monitoring in unmanned rooms and unattended scenes. It adopts 9-60VDC wide voltage power supply and can measure 12 single battery voltages of 2V, 6V and 12V, and can measure battery packs in groups, up to 6 groups, the total battery pack voltage that can be measured is 300V, and 2 analog inputs are reserved for measuring Battery pack total current total voltage and battery pack temperature. 1.Can measure 12 way basic voltage, 1 way total voltage; support 12 sections of 2V, 6V, 12V single battery voltage monitoring, total voltage Max. 300VDC; 2.Support 2 analog inputs, optional 4-20mA or 0-5V, plus the corresponding instrument supports battery pack total current, total voltage, temperature real-time measurement; 3.1 ESD protection RS485 serial port , support Modbus RTU protocol, add BLIIoT Modbus gateway can upload all the data of the device to the cloud, realize SMS, phone and WeChat alarm for over limit threshold.
