Myers EPS

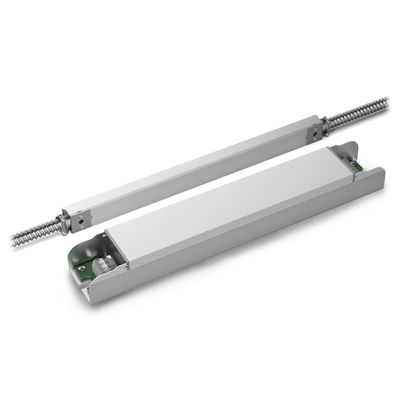

Myers EPS - Model LED-BP-SLIM Series -Battery Packs
FromMyers EPS
The LED-BP-SLIM Series battery packs allow users to convert normal LED luminaires into approved emergency lighting luminaires. Featuring a slim profile, the units can be mounted inside or outside of the luminaire. During emergency operation, LED-BP-SLIM automatically transfers to battery power. The automatic voltage detection circuit matches the output voltage to your specific LED fixture, and runs it at constant power/light output for a minimum of 90 minutes. When the AC power is restored, the emergency LED-BP-SLIM Series switches the system back to normal mode of operation and resumes battery charging.
Most popular related searches
LED luminaire
lithium battery
battery backup
battery protection
LED fixtures
LED driver
battery system
low voltage protection
lighting system
LED lighting
Flexible Conduit Version:
- LED-BP-SLIM-4.5W: 10.16″ L x 1.18″ W x 0.87″ D
- LED-BP-SLIM-9W : 12.52″ L x 1.18″W x 0.87″D
- LED-BP-SLIM-10W: 12.52″ L x 1.18″ W x 0.87″D
- LED-BP-SLIM-13.5W: 15.87″ L x 1.18″ W x 0.87″ D
- LED-BP-SLIM-18W: 18.43″ L x 1.18″ W x 0.87″ D
Push-In Terminal Block Version:
- LED-BP-SLIM-4.5W-TB: 7.87″ L x 1.18″ W x 0.87″ D
- LED-BP-SLIM-9W-TB: 10.24″L x 1.18″W x 0.87″D
- LED-BP-SLIM-10W-TB: 10.24″ L x 1.18″ W x 0.87″ D
- LED-BP-SLIM-13.5W-TB: 13.58″ L x 1.18″ W x 0.87″ D
- LED-BP-SLIM-18W-TB: 16.14″ L x 1.18″ W x 0.87″ D
- UL924 Listed
- Converts LED luminaires into approved emergency lights for 90 minutes
- Constant power output with automatic overload and low battery protection
- Automatic Voltage Detection: can be used with LED drivers/luminaires operating from 5-300VDC
- 120-277VAC Universal Input
- LED Test Switch
- Li-Ion batteries provide long life and are maintenance- free
- 5-Year Warranty
- Self-diagnostics
- Suitable for use in dry or damp locations.
- Approximately 450-1800 lumen output (depending on model selected)
- Can be mounted inside or outside of the luminaire
- Unique feature: conduit version may be converted to TB version if installation requirements change
- 4.5W, 10W, 9W, 13.5W, 18W
