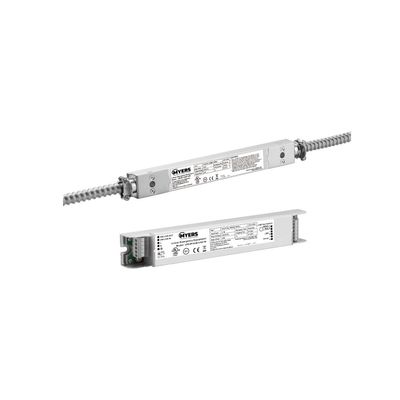

Myers EPS - Model LED-BP-COLD Series -Battery Packs
MYERS EPS’ LED-BP-COLD Series battery packs allow users to convert normal LED luminaires into approved emergency lighting luminaires. With the slimmest and lowest profile in the industry, these units can be mounted inside or outside of the luminaire. During emergency operation, LED-BP-COLD automatically transfers to battery power. The automatic voltage detection circuit matches the output voltage to your specific LED fixture and runs it at constant power/light output for a minimum of 90 minutes. When AC power is restored, the emergency LED-BP-COLD Series switches the system back to normal mode of operation and resumes battery charging. The LED-BP-COLD battery packs are able to operate at low temperatures during normal and emergency situations. These cold-weather battery packs have been created with an internal heating element and temperature-controlled circuitry that keeps the system from freezing.
Flexible Conduit Version:
- LED-BP-COLD-18W: 15.55″ L x 1.97″ W x 1.18″ D
- LED-BP-COLD-27W: 18.11″ L x 1.97″ W x 1.18″ D
- UL924 Listed
- IP66 rating, outdoor and damp rated
- Able to withstand extremely low temperatures (-40°C to 50°C / -40°F to 122°F
- Converts LED luminaires into approved emergency lights for 90 minutes.
- Constant power output with automatic overload and low battery protection
- Automatic Voltage Detection: can be used with LED drivers/luminaires operating from 10V-400VDC, depending on model
- 120-277Vac Universal Input
- LED Test Switch Note: IP66 version test switch available
- 120-277VAC Universal Input
- LI-Ion batteries provide long life and are maintenance-free
- 5-Year Warranty
- Self-diagnostics
- Available in 18W & 27W sizes (Approximately 1800-2700 lumen output)
- Can be mounted inside or outside of the luminaire
- Unique feature: flexible conduit can be removed to expose wire leads if installation requirements change
- 18W, 27W
