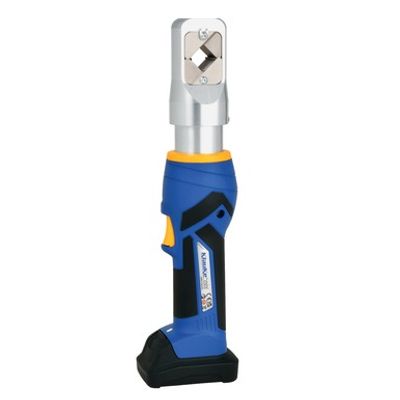

Klauke - Model EK WF 120 ML -Battery Powered Hydraulic Crimping Tools
EK WF 120 ML Battery-powered hydraulic crimping tool 6 - 120 mm².
Most popular related searches
battery powered hydraulic crimping tool
lithium battery
hydropower
battery system
battery capacity
battery temperature
- Innovative square (comb) pressing - no change of crimping dies required
- Only one pressing required (up to a wire end sleeve length of 32 mm)
- Powerful 10.8 V Li-Ion battery technology with battery charge indicator
- Closed head
- Simple and safe: one-button operating concept for controlling all tool functions
- Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining
- Effortless operations thanks to low weight
- Automatic retraction when operation is complete
- Manual retract stop (MRS+) for positioning control for multiple crimps
- Maintenance display via LED
suitable for
- Cable end sleeves
- Insulated cable end-sleeves
- Twin-cable end sleeves
- Insulated twin cable end sleeves
- Crimping force: 10 / 40 kN
- Stroke/opening width: 19 mm
- Crimping range: 6 - 120 mm²
- Crimping cycle: 1 s to 5 s (depending on crimping cross-section)
- Battery voltage: 10.8 V
- Battery capacity: 2,5 Ah, Li-Ion
- Battery charging time: approx. 45 min.
- Weight including battery: 1.96 kg
- Ambient temperature: -10 °C to +40 °C
*Klauke® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.
