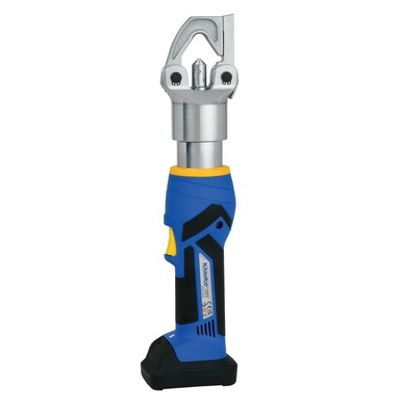

Klauke - Model EK 30 ID ML -Battery Powered Hydraulic Crimping Tools

• Closed head, flip top style, rotatable
• Simple and safe: one-button operating concept for controlling all tool functions
• Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining
• Effortless operations thanks to low weight
• Automatic retraction when operation is complete
• Maintenance display via LED

suitable for

• Very well suited for compacted conductors
• Especially for fine strand conductors according to DIN VDE 60228

• Crimping force: 30 kN
• Stroke/opening width: 22 mm
• Crimping range: 6 - 120 mm²
• Crimping cycle: 2.5 s to 5 s (depending on press cross-section)
• Battery voltage: 10.8 V
• Battery capacity: 1.5 Ah, Li-Ion
• Battery charging time: approx. 40 min.
• Weight including battery: 1.95 kg
• Ambient temperature: -10 °C to +40 °C

*Klauke® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.
