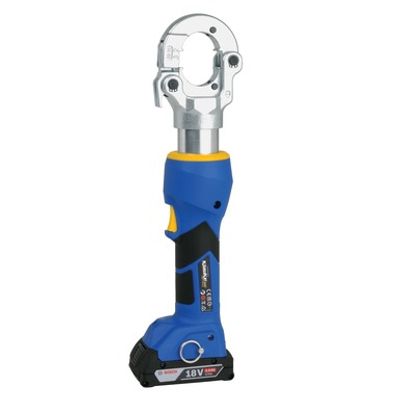

Klauke - Model EKM 60/22 - Battery Powered Hydraulic Crimping Tools

• Choose your battery system: Bosch or Makita
• All data can be easily read via Bluetooth
• Closed head, flip top style, rotatable
• Quality assurance via visual and audible signals in case of error
• Simple and safe: one-button operating concept for controlling all tool functions
• Effortless working due to balanced centre of gravity
• LED for work area illumination
• Simple and safe: automatic retraction when operation is complete
• Automatic retract stop (ARS) for positioning control in case of multiple crimps
• Always ready-to-use thanks to battery charge and service display

suitable for

• 22-series interchangeable crimping dies, narrow crimping

Download Klauke Link App

Klauke Link – a new mobile platform that provides an interface to Klauke devices equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your smartphone or tablet. Register today and start working faster... and smarter.

Bosch battery system

• Crimping force: 60 kN
• Stroke: 17.5 mm
• Crimping range: 6 - 300 mm²
• Crimping cycle: 2 s (for ARS) and 5 s (depending on crimp cross-section)
• Battery voltage: 18 V
• Battery capacity: 2.0 Ah, Li-Ion
• Battery charging time: 15 mins
• Weight including battery: 3.0 kg
• Ambient temperature: -10 °C to +40 °C

Makita battery system

• Crimping force: 60 kN
• Stroke: 17.5 mm
• Crimping range: 6 - 300 mm²
• Crimping cycle: 2 s (for ARS) to 5 s (depending on crimp cross-section)
• Number of crimps: approx. 150 - 200 at 150 mm² Cu DIN
• Battery voltage: 18 V
• Battery capacity: 1.5 Ah, Li-Ion
• Battery charging time: 15 mins
• Weight including battery: 3.0 kg
• Ambient temperature: -10 °C to +40 °C
