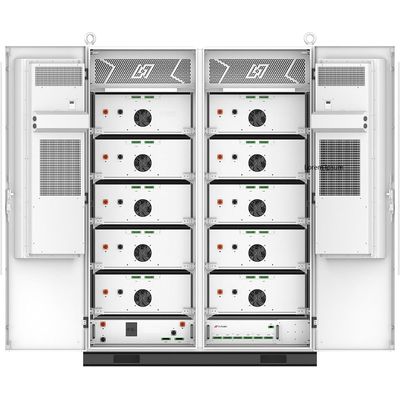

Powerbox - Model 100/200K - Battery Storage System

Less floor footprint

• Highly compact
• High degree of system integration
• Less than 2 square meters

Longer durability

• Excellent IP65 protection
• Fully dust and waterproof
• C5 anti-corrosion painting

Fast response

• 10 ms to respond to demand
• Seamless transfer from outage

Quick deployment

• Designed for different scenarios
• Plug-and-play feature
• Meet multiple tasks

Smart Control

• AI-based system monitoring and analysis
• IoT technology integrated
• Remote alarming and control

• Roundtrip efficiency (max): 91%
• Dimension of Battery Cabinet (L*W*H): 1,600 x 1,250 x 2,200 mm
• Dimension of Control Cabinet (l/W`H): 800x1,100x2,200 mm
• Total System weight: 2,900 kg
• Protection class: IP55
• Operating temp range: -30-55°C
• Relative humidity: 0-100% (non-condensing)
• Working altitude: 3,000m / 10,000 feet (>2,000m/6,500 feet, power derating)
• Cooling manner: Forced air
• Fire fighting system: Novecl230 / FM-200
• Communication interface: RS485, Ethernet, GPRS
• Certificates: IEC62619, IEC63056, IEC60730-1
