Beam Casting Machine
From Beams & Piles

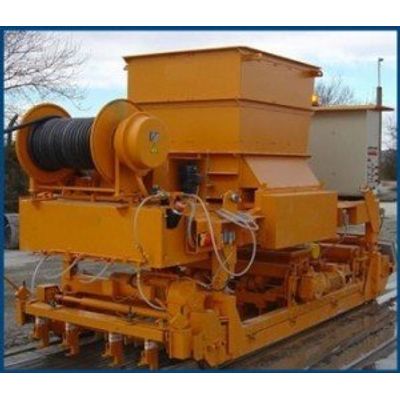

The beam casting machine is a compact casting machine for casting different sizes of beams. The machine is build in such a way that the beams can be casted on standard hollow core steel beds. The machine exists of two parts, the upper part in which is the complete electrical system is integrated. The lower part of the machine is the casting unit, for quickly exchanging to a other product several casting units can be used with only 1 upper part. The complete machine is electrically driven, the driving as well as all moving parts are provided with frequency inverters. All the moving parts are speed adjustable by the use of potentiometers. The operation of the machine is kept very easy, by the use of pushbuttons on the side of the machine. The Beam casting machine can be used for a wide range of products, also the machine will be designed on customer wishes and product specifications which gives you full freedom in creating your perfect machine.
-
Most popular related searches
Specifications
- Machine length: ± 4 meter.
- Machine width: ± 2 meter (1200 mm track)
- Machine height: ± 2,6 meter. Could change with a different hopper size.
- Machine weight: ± 5000 kg.
- Supply voltage: 400 Volts, cable drum or power rail
- Power consumption: 110 Amperes
- Drive: Completely electrical with frequency inverters
- Total power: 60 kW
- Speed: 0-30 m/min adjustable.
- Standard cassette: 1 on given measurements
- Options: Multiple casting cassettes, remote control, touch screen instead of pushbuttons
- Hopper volume: From 1m3
