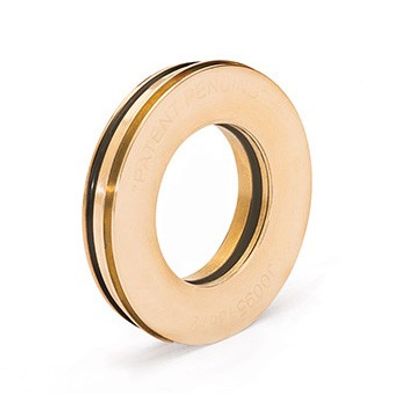

Inpro - Seal - Model mini66 -Bearing Isolator
FromInpro/Seal
The mini66 Bearing Isolator is the smallest IP66 rated Bearing Isolator available. With a 9.52 mm (0.375 in.) overall length, the Inpro/Seal mini66 Bearing Isolator protects against both water and dust ingress on grease lubricated applications with limited space. This unique compact design exceeds IEEE-841 standards and allows for permanent bearing protection on a wider range of rotating equipment than ever before. A non-contacting seal with no wearing parts, the mini66 Bearing Isolator provides IP66 performance for the lifetime of your application.
Most popular related searches
- Innovative Rotor/Stator Interface – provides permanent IP66 rated protection against contamination ingress
- Contamination Chamber – collects contaminants trying to enter the bearing housing and expels them through the expulsion port through centrifugal force and gravity
- VBX® Ring – blocks the transfer of vapor contamination created by heating/cooling of the bearing enclosure and acts a restrictor band to eliminate grease loss
- Compact Design – 9.52 mm (0.375 in.) overall length makes it the smallest IP66 rated Bearing Isolator on the market
- Standard Material – Bearing Bronze
- Axial Movement – 0.13 mm (0.005 in.)
- Radial Movement – 0.38 mm (0.01 in.)
- Temperature Range – -26°C (-15°F) to 121°C (250°F)
- Speed – 10,000 sfpm
- Standard Overall Length – 9.52 mm (0.375 in.)
- Shaft Size – 15.88 mm (0.625 in.) to 101.6 mm (4.000 in.)
