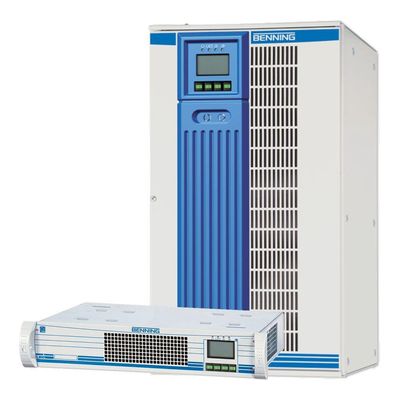

BenningModel ADC - Modular Rectifier Systems

SHARE

Electronic equipment for the process and transportation industries, as well as for telecommunication, power generation and distribution utilities, are using microprocessors, and require continuous DC power in the event of mains failure or mains disturbances. The new BENNING ADC rectifier line, with its modular and compact design, provides a perfect solution for a wide range of applications in the industrial and telecommunication market.

Most popular related searches
  • switched-mode rectifier
  • power range of 300 W to 2,400 W
  • wide-range input
    • 93 V to 264 V without derating
  • suitable for all common voltages
    • 12 V, 24 V, 48 V, 60 V, 108 to 110 V, 216 to 220 V
  • 19" module
  • compact, modular, fail-safe
  • circuit-design
    • digital controller
  • n+1 redundancy
  • stand-alone modules
  • extensive signaling and monitoring ?function
  • different operating modes ?available
  • temperature-controlled ?charging
  • battery availability test / ?battery circuit test
  • galvanically isolated
  • high quality of output power

  • low residual ripple at rectifier output
  • low THD (total harmonic distortion)
  • suitable for Lead and NiCd batteries
  • low volume and weight
  • easy adaptation of system power
  • low-cost “all-inclusive” system
  • plug and play
