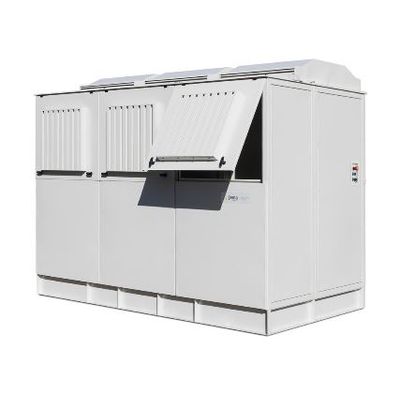

Jema - Model 1500 V -Bi-Directional Central Inverter
FromJema Energy S.A
Jema inverters are bi-directional. The IFX6-IBX6 series are designed for large-scale commercial and distribution PV plants and dual-purpose battery chargers. The 1500 V DC input devices are designed with an efficient and intelligent climate management system.
Most popular related searches
central inverter
inverter
harmonic filter
battery charger
photovoltaic plant
utility-scale photovoltaic plant
commercial photovoltaic plant
grid-connected inverter
smart grid inverter
utility-scale photovoltaic
New design and high performance
The central inverters have a new high-performance design.
- Redundant variable ventilation by physical separation of the DC and AC zones as well as the IGBTs of the AC filters.
- Each inverter module has independent air conditioning management.
- Filter maintenance is performed externally.
- Specific design for high temperatures up to 50º C with low auxiliary consumption.
- Outdoor system with filter adaptations for arid environments and redundant ventilation system
- Injection capacity in off-grid or on-grid mode (smart inverters).
- Capacity to manage reactive power, adapting to the most demanding grid codes.
- Complies with the strictest grid codes
- High capacity for providing reactive energy
- Helps grid quality using the vectorial modulation system (SVM).
- Highly precise calculations with a latest generation 32-bit microprocessor with floating point arithmetic capability.
- Accessibility from the outside for basic maintenance tasks without shutting down the equipment.
- Harmonic filtering up to range 7.
