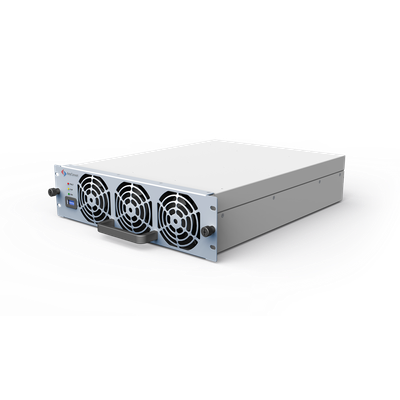

INNOX ENERGY - Model BEG1K075G - Bidirectional AC/DC Conversion Module for V2G and Energy Storage
The BEG1K075G is an advanced bidirectional AC/DC conversion module that plays a crucial role in applications such as Vehicle-to-Grid (V2G), energy storage charging, and the reuse of retired batteries, as well as in microgrids with multiple energy inputs. Designed to deliver a wide constant-power voltage range from 300Vdc to 1000Vdc, it exemplifies high efficiency with Silicon Carbide (SiC) technology, achieving an efficiency of 96% and ensuring considerable energy savings with power densities of 36W/in³ to 49W/in³. The module supports three-phase AC input without a neutral line, thus eliminating the risk of excessive neutral current and lowering overall system costs. It employs a high-frequency transformer for isolation, thus ensuring enhanced reliability. With features like dual DSP digital control and support for both grid-connected and off-grid scenarios, the BEG1K075G exhibits excellent electromagnetic compatibility, conforming to EN61000-6-1 and EN61000-6-3 standards. It is compatible with a wide AC voltage range from 260Vac to 530Vac and a DC voltage range of 150Vdc to 1000Vdc, making it versatile for various power and energy storage solutions.
High Efficiency and Energy Saving
- Wide constant-power voltage range：300Vdc~1000Vdc，constant-power output.
- High efficiency：It is designed with all-SiC (Silicon Carbide), boasting an efficiency of 96% and being more energy-efficient.
- High power efficiency： 36W/in3 / 49W/in3，save area.
Safety and Reliability
- Three-phase AC input without a neutral line：Eliminate the risk of excessive neutral current and simultaneously reduce the system cost.
- Bidirectional energy flow：Bidirectional conversion between AC/DC and DC/AC, with a smooth transition when the power flow direction changes.
- Isolation by high-frequency transformer：Ensure the high reliability of the bidirectional conversion module.
Intelligent and Convenient
- Fully digital control：Dual DSP design, with high-reliability control.
- Support grid-connected and off-grid applications：Adapt to various application scenarios.
Widely Compatible
- Wide AC voltage range： 260Vac～530Vac， compatible with various power grids.
- Wide DC voltage range ： 150Vdc~1000Vdc，compatible with various power batteries and energy storage batteries.
- Excellent EMC performance： Meet the requirements of EN61000-6-1 and EN61000-6-3 electromagnetic compatibility CLASS B.
