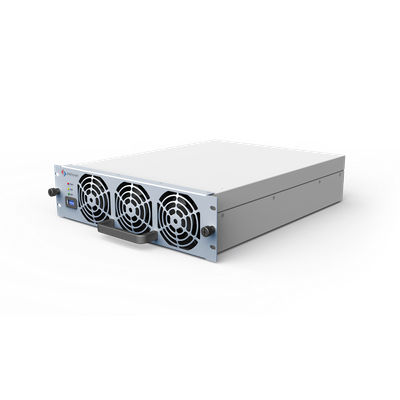

Innox Energy - Model BEG1K075G - Bidirectional AC/DC Conversion Module for V2G and Energy Storage
The BEG1K075G is a versatile bidirectional AC/DC conversion module designed to optimize energy applications in Vehicle-to-Grid (V2G) systems, energy storage solutions, and the reutilization of retired batteries in complex microgrids. Its design incorporates advanced Silicon Carbide (SiC) technology to achieve up to 96% efficiency, ensuring energy savings with high power density of 36W/in3 to 49W/in3. The module operates within a wide constant-power voltage range of 300Vdc to 1000Vdc, accommodating a broad spectrum of operational demands. The unit supports three-phase AC input without a neutral line, minimizing the risks of excessive current and reducing overall system costs. With a fully digital dual DSP control, the module provides reliable performance in both grid-connected and off-grid scenarios. It features a wide AC voltage compatibility and meets stringent EMC requirements as per EN61000-6-1 and EN61000-6-3 standards, making it an ideal component in modern energy systems.
High Efficiency and Energy Saving
- Wide constant-power voltage range：300Vdc~1000Vdc，constant-power output.
- High efficiency：It is designed with all-SiC (Silicon Carbide), boasting an efficiency of 96% and being more energy-efficient.
- High power efficiency： 36W/in3 / 49W/in3，save area.
Safety and Reliability
- Three-phase AC input without a neutral line：Eliminate the risk of excessive neutral current and simultaneously reduce the system cost.
- Bidirectional energy flow：Bidirectional conversion between AC/DC and DC/AC, with a smooth transition when the power flow direction changes.
- Isolation by high-frequency transformer：Ensure the high reliability of the bidirectional conversion module.
Intelligent and Convenient
- Fully digital control：Dual DSP design, with high-reliability control.
- Support grid-connected and off-grid applications：Adapt to various application scenarios.
Widely Compatible
- Wide AC voltage range： 260Vac～530Vac， compatible with various power grids.
- Wide DC voltage range ： 150Vdc~1000Vdc，compatible with various power batteries and energy storage batteries.
- Excellent EMC performance： Meet the requirements of EN61000-6-1 and EN61000-6-3 electromagnetic compatibility CLASS B.
