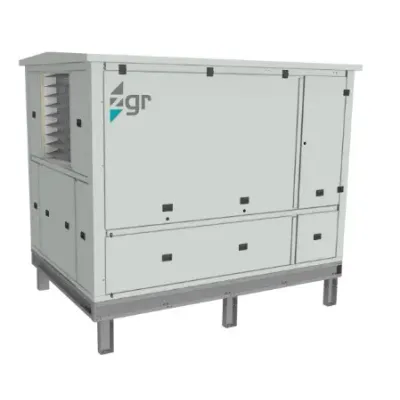

ZGR - Model PCS 3300 -Bidirectional Battery Charger - 1500 V

SHARE
The ZGR PCS 3300 is a sophisticated bidirectional battery charger designed to efficiently manage storage systems and provide essential grid services. This three-phase charger utilizes advanced control technology to regulate the bidirectional flow of energy, making it ideal for charging and discharging batteries using grid-available energy. By integrating renewable energy sources, the ZGR PCS 3300 helps minimize investment in grid infrastructure while enhancing grid stability and accommodating increased energy generation and demand. It supports multiple operation modes including control of power, voltage, frequency, and inertia emulation, furnishing grid operators with an indispensable tool to uphold high-quality grid operations. Additionally, the Black Start function bolsters the manageability of battery-stored energy, making it a robust and reliable solution for modern power systems.
Most popular related searches
battery charger
reactive power controller
renewable energy
voltage control
voltage controller
battery storage
bidirectional energy
battery discharge
energy demand
battery design

The ZGR PCS 3300 optimally manages storages systems by providing the necessary grid services.

ZGR PCS is a three-phase charger with the latest control technology over the bidirectional flow of energy. The main application in the management of charging and discharging batteries using energy available on the grid.

The ZGR system facilitates the integration of renewable energy sources and allows reducing investments in the grid, improving stability, and enabling an increase in energy generation and demand. Thanks to the different modes of operation implemented (Control of Power, Voltage, Frequency, and inertia emulation), ZGR PCS offers grid operators a fundamental tool to maintain the operating conditions of the grid within appropriate quality standards. In addition, it has a Black Start function, increasing the manageability of the energy available in the batteries.

  • DC voltage range (950 - 1500Vdc)
  • Harmonic distortion, THD < 3%
  • Automatic operation modes: Frequency control, Voltage control, Black Start (Active Power Reserve Mode), Active/Reactive Power Control.
  • Quick response to change setpoints of control.
  • Wide working temperature range between -20oC and +50oC.
  • Modular.
  • AC Protections: Short circuit and overload, Over and Under voltage
  • IP55 protection grade
  • Installation up to 4000 m.a.s.l.
  • Reduced maintenance in operation
  • AC and DC disconnectors
  • Remote monitoring
  • DC Protections: Reverse polarity, Short circuit, Surge, Insulation failure detection
