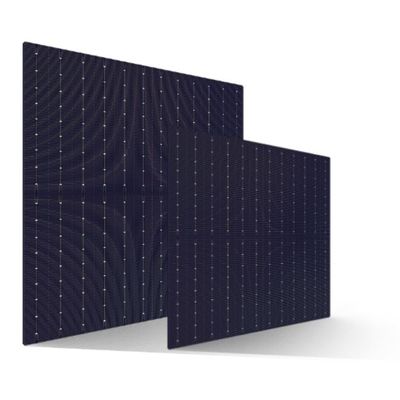

AIKO - Bifacial Mono PERC Cell
AIKO`s Bifacial Mono PERC Cell stands out in the photovoltaic market for its exceptional efficiency, reliability, and power yield. Utilizing advanced `Bifacial, metrology, and classification` technology, these cells are available in multiple configurations, including 182mm 10BB, 210mm 12BB, and 210mm 9BB variants. Each configuration is engineered to maximize energy output by capturing sunlight on both sides of the panel, thereby optimizing power generation. This bifacial design, combined with multi-busbar technology, enhances the overall electrical performance and reduces resistive power loss. The cells are designed with high-purity silicon and innovative passivation techniques, ensuring minimal degradation over time. Ideal for both residential and commercial solar energy systems, AIKO`s PERC cells provide a robust solution for those looking to harness renewable energy efficiently.
- 182mm×182mm（diameter 247±0.5mm）
- 210mm×210mm（diameter 295±0.25mm）
- Thickness：160±20μm
182mm 10BB Bifacial Mono PERC Cell
- Front Side (−): Silicon oxide + blue silicon nitride compound anti-reflection coating (PID Free) ; The front side is a half-cut design; The busbar head is a large double fork, and the pads of the busbar are intermittently stepped. The size of the head pad is 1.2 ± 0.15mm * 1.3± 0.15mm, and the middle pad of the busbar size is 0.8±0.15mm*1 ± 0.15mm.
- Back Side (+): Passivated layer (AlOx and SiNx) and Rear Contact (Al); the rear electrode is composed of 10 roots rear compound busbar and 160 roots rear Al fingers. The composite busbar is locally narrowed, and the width is 1.5 ± 0.3mm and 1.0 ± 0.3mm, respectively. 8 sections 1.45±0.3 mm silver anode, no laser pattern under the rear electrode. Silver electrode has round head, and silver electrode is 1.5±0.6mm hollow at both ends.
210mm 12BB Bifacial Mono PERC Cell
- Front(-):Silicon dioxide + blue nitride composite anti-reflection film (PID free);Three-Segment design,12 roots bus bar and 120-180 roots fingers;The bus bar width is 0.06±0.02mm with three-Segment design, and the bus bar has two forks head (size (1.3±0.2)mm × (1.0±0.1) mm) ;the size of 4 padsat the junction of bus bar and the fingers is (1.2±0.2)mm × (0.5±0.2)mm.
- Back(+):AlOX and SiNX dual layer and rear contact; the rear electrode is composed of 12 roots rear compound bus bar and 150-250 roots rear Al fingers,8 sections,1.4±0.3 mm silver anode.
210mm 9BB Bifacial Mono PERC Cell
- Front(-): Silicon dioxide + blue nitride composite anti-reflection film (PID free);Three-Segment design,9 roots bus bar and 120-180 roots fingers; The bus bar width is 0.08±0.03mm with three-Segment design, and the bus bar has two forks head (size (1.5±0.1)mm × (1.2±0.1) mm) ; the size of 4 padsat the junction of bus bar and the fingers is (1.5±0.15)mm × (1.0±0.15)mm.
- Back(+):AlOX and SiNX dual layer rear contact; the rear electrode is composed of 9 roots rear compound bus bar and 150-250 roots rear Al fingers,9 sections,1.8±0.2 mm silver anode.
