BinTrac HouseLINK - Model 10A (HL-10A) - Communications Interface Options System
The HouseLink 10A (HL-10A) provides a 0-10 VDC analog voltage output proportional to the weight.
Most popular related searches
- Analog input required on third party controller or PLC
- Uses proprietary Power Supply that provides better protection against power surges and lightning
- Requires 1 HL-10A for every bin
Our team has worked with the teams from the top control manufacturers to develop interfaces that connect via ANALOG, DIGITAL, PROPORTIONAL, SERIAL and ETHERNET. No matter how your control communicates, BinTrac® likely has a HouseLINK™ Interface that will work for you.

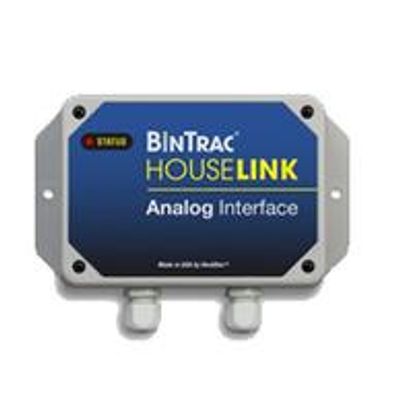

HouseLink 10A (HL-10A)
The HouseLink 10A (HL-10A) provides a 0-10 VDC analog voltage output proportional to the weight.
- Analog input required on third party controller or PLC
- Uses proprietary Power Supply that provides better protection against power surges and lightning
- Requires 1 HL-10A for every bin
HouseLink 10D (HL-10D)
The HouseLink 10D (HL-10D) provides a user configurable pulsed output as weight is removed from the bin.
- Digital input required on third party controller
- Simulates a dump scale
- Compatible with ChoreTronics® II or III controller
- Utilizes the Power Supply from the BinTrac® bin weighing system
- Requires 1 HL-10D for every BinTrac® Indicator.
HouseLink 10P (HL-10P)
The HouseLink 10P (HL-10P) provides a 2-3 mV/V output proportional to the bin weight.
- Simulates analog load cells
- Get power through the excitation of the control
- HL-10P is compatible with Rotem® controls. The Rotem controller will require a scale card, silo plug and scale card power supply to work.
- HL-10P (Low Voltage) is compatible with Maximus controls when connected to the Maximus scale card
- Requires 1 HL-10p or HL-10P (Low Voltage) per bin.
