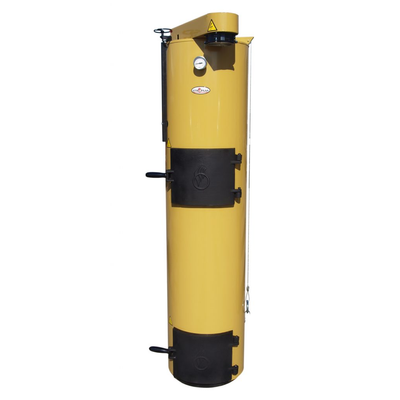

Stropuva - Model S7 -Bio Boiler
When the firewood is loaded, a single load burns up to about 30 hours. A single load of sawdust briquettes burns up to 4 hours. A single load of pellets burns up to 96 hours. Solid fuel: firewood, timber waste, sawdust briquettes, pellets and wood chips, Combustion duration of solid fuel load depends on its quality of fuel, outdoor and indoor temperature, thermal resistance, and other factors. Recommended moisture ≤30%*.
Most popular related searches
wood chip combustion
wood pelletizing
wood pellet
wood pelletting
pellet burning
boiler construction
boiler pressure
wood burning
wood combustion
sawdust wood pellet
- Boiler model: S7 BIO
- Power (kW)*: 7
- Heating area ( m²)**: 20-70
- Fuel capacity (dm³): 90
- Maximum amount of firewood (kg): 15
- Maximum amount of wood pellets (kg): 50
- Maximum amount of briquettes (kg): 20
- Maximum amount of coal (kg): –
- Burning time of wood on a minimum time mode (hr): 28
- On maximum mode ***: 5,6
- Burning time of briquettes on minimum mode (hr): 50
- On maximum mode ***: 10
- Burning time of wood pellets on minimum mode (hr): 72
- On maximum mode ***: 14
- Burning time of coal on minimum mode (hr): –
- On maximum mode ***: –
- Firewood length (cm): iki 35
- Amount of water in the boiler (l): 15
- Efficiency (%): 86,3
- Water boiler pressure maximum (bar): 2,0
- Pressure safety valve (bar): 1,5
- Chimney Draught (Pa): 10-20
- Flow of heated water (l / h): 200
- Water temperature in the boiler (° C): 85
- Minimal area of chimney flue (cm²): 150
- Chimney diameter (mm): 160
- Distance between ground and chimney (mm): 961
- Height (mm): 1330
- Depth (mm): 450
- Weight (kg): 129,6
