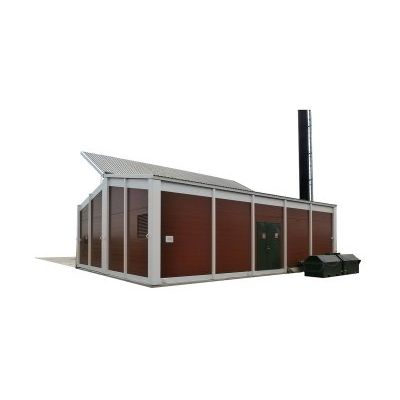

Veto Cont - Model L and D - Biomass Boiler Container
The Veto Cont L and D biomass boiler containers are a heat production solution aimed particularly at heating companies, and for industrial use. The Veto Cont L functions best as a district heating station or as a heat production device for large premises. The Veto Cont L models are made from 500 kW all the way to 990 kW, and the Veto Cont D (D = double container) are available up to the capacity of 2000 kW.
Most popular related searches
Technical specifications (L and D):
- Capacity range: 500 – 2000 kW
- Silo volume: 40 – 120 m³
- External dimensions, L-model: 4.5 x 12 m (height 4.5 m)
- External dimensions, D-model: 2 pcs x 4.5 x 12 m (height 4.5 m)
- Weight: -
The basic package includes:
- Veto-stoker boiler (boilers),
- pneumatic soot-blowing,
- flue gas cleaner,
- water-cooled and movable grate burner,
- cooling pump for the burner,
- spring agitator (burner device) in the L-model,
- deloader (burner device) in the D-model,
- rotary feeder,
- two-part ash screw,
- Veto Control XL control panel,
- flame control automatics,
- remote control, GSM alarm,
- dry run protection,
- 1 x pipe input/output isolated,
- safety valves,
- filling devices,
- ventilation valve,
- expansion tank for the heating boiler Accessories,
- ash grate,
- extra pipe outputs,
- circulation pump,
- energy meter,
- heat exchangers,
- ash screw for the convection part
Accessories:
- Ash grate,
- Extra pipe outputs,
- Mixing valve,
- Circulation pump,
- Energy meter,
- Heat exchanger,
- Ash screws for the convection part,
