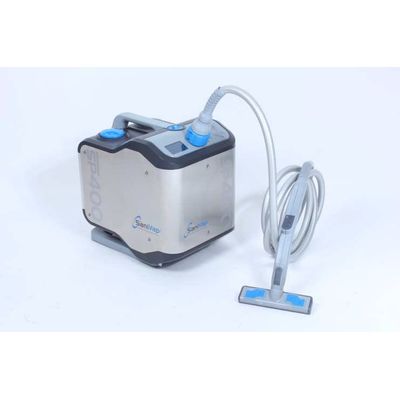

SANIVAP - Model SP400 -Biocleaning Steam System
The SP400 biocleaning steam system ensures the complete cleaning and disinfecting of all kind of surfaces : floors, vertical surfaces, furniture, equipment, medical devices… The constant steam quality of the SP400 ensures its effectiveness in terms of cleanliness and disinfection. The SP400 is especially designed for intensive use up to 8 hours per day. The SP400 steam system is ergonomic, easy to operate and very suitable for daily usage in accordance with SANIVAP protocols. The wide range of adaptable accessories contributes to its effectiveness and versatility.
Boiler
- capacity 3.1 L
- material / quality stainless steel 316L
- steam pressure 5 bars
- steam temperature 150°C
- self-filling device yes
- steam outflow 0 à 70 g/mn
Electric power
- voltage 230v – 50/60Hz
- boiler 2800w
- internal, dismountable and anti-corrosion resistance
- total power 2850w
Tanks capacity
- water tank for steam production 4,6 L
- filter on steam output yes
- Electric protection
- product IP 44
- waterproof electronic and electric box IP 56
Weight / size
- steam hose professional 4,5 m
- electric cable in neoprene 10 m
- product 19 Kg
- size L 42 x l 30 x h 43 cm
Homologation / certifications
- CE medical devices LNE 0459
- SANIVAP is certified : ISO 13485
- Warranty : 1 year (parts / labour and transportation cost or local repair by accredited technician)
- Boiler warranty : 3 years according to Sanivap warranty conditions
Conception of the boiler
- Internal, dismountable and anti-corrosion résistance
- Quality material (316L austenitic stainless steel)
- Self filling magnetic system
- High boiler insulation
- Optimized performance ratios of the boiler : power / pressure / steam outflow
Conception of fluid circuits
- Electronic monitoring of steam pressure and
- temperature to secure disinfection efficacy.
- Steam output regulation – 6 levels
- Steam stainless steel filter protecting electro valve
- Self-filling magnetic contactor
- Filter on water tank
- Easy drain of the boiler with safety valve
- Easy drain of water tank
Quality of material
- Structure and components in stainless steel , ABS, Aluminium
- Stainless steel boiler 18/10 quality AISI 316L
- Wheels high quality standard
Safety
- Hand contactor on steam handle
- Device fully protected - IP 44
- Electric and electronic box waterproof - IP 56
- Neoprene electric cable 10m (3x2.5mm)
- Alarm : lack of water for boiler supply
- Lack of water security for boiler protection
Ergonomics
- Ergonomic hand contactor on steam handle
- Ergonomic steam handle
- Easy accessories connexion
- Easy draining and steam cleaning of water tank
- Range of ergonomic accessories
- Ergonomic steam biocleaning trolley
- LCD control screen for operator (steam output, water level in tank…)
PROTOCOLS AND TRAINING
- Training provided for use of the steam system and its regular maintenance
- Suitable protocols at disposal
TECHNICAL ASSISTANCE
- Technical assistance to the users for an optimal use of the steam system
- Availability of maintenance contracts
- After Sales Service provided by accredited national network
ACCESSORIES RANGE
- The SANIVAP long experience has enabled to develop a wide range of ergonomic accessories suitable for cleaning and disinfecting protocols.
- The technical microfiber range associated to the SANIVAP accessories optimizes the performance of the steam system.
