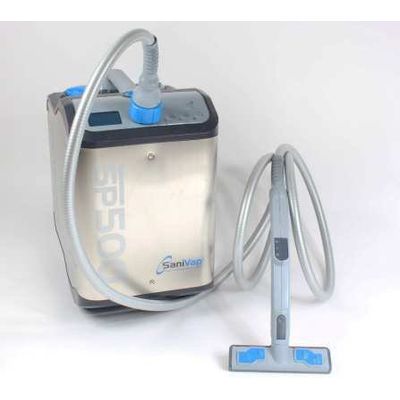

SANIVAP - Model 540H -Biocleaning Steam System

The SP540H provides the following benefits :

• Very high disinfection efficacy including on multi resistant bacteria such as MRSA, CRE, bacillus, C.Difficile spores.
• Reduction of operating costs in terms of time and absence of chemical use
• Preservation of surface and equipment integrity
• 100% ecological: no chemical usage and related polluted reject
• No risk for the operator thanks to the very low concentration of hydrogen peroxide in the steam flow

The SP540H is especially designed for intensive use up to 8 hours per day.

The SP540H can also be used for steam only biocleaning operation

Boiler

• capacity 3.1 L
• material / quality stainless steel 316L
• steam pressure 5 bars
• steam temperature 150°C
• self-filling device yes
• steam outflow 0 à 70 g/mn

Electric power

• voltage 230v – 50/60Hz
• boiler 2800w
• internal, dismountable and anti-corrosion resistance
• total power 2850w

Tanks capacity

• water tank for steam production 6 L
• Hydrogen peroxide external connectable tank 2 L

Electric protection

• product IP 44
• waterproof electronic and electric box IP 56

Weight / size

• steam hose professional 4,5 m
• electric cable in neoprene 10 m
• product 25 Kg
• size L 42 x l 30 x h 48 cm

Certifications

• SANIVAP is certified : ISO 13485
• Warranty : 1 year (parts / labour and transportation cost or local repair by accredited technician)

Boiler warranty : 3 years according to Sanivap warranty conditions

Conception of the boiler

• Internal, dismountable and anti-corrosion résistance
• Quality material (316L austenitic stainless steel)
• Self filling magnetic system
• High boiler insulation
• Optimized performance ratios of the boiler : power / pressure / steam outflow

Conception of fluid circuits

• Electronic monitoring of steam pressure and temperature to secure disinfection efficacy.
• Steam output regulation – 6 levels
• Connector for hydrogen peroxide tank.
• Steam stainless steel filter protecting electro valve
• Self-filling magnetic contactor
• Filter on water tank
• All fluid circuit adapted to hydrogen peroxide solution
• Injection chamber of hydrogen peroxide design to get a perfect homogeneous steam – hydrogen peroxide mix to ensure disinfection

PROTOCOLS AND TRAINING

• Training provided for use of the steam system and its regular maintenance
• Suitable protocols at disposal

TECHNICAL ASSISTANCE

• Technical assistance to the users for an optimal use of the steam system
• Availability of maintenance contracts
• After Sales Service provided by accredited national network

ACCESSORIES RANGE

• The SANIVAP long experience has enabled to develop a wide range of ergonomic accessories suitable for cleaning and disinfecting protocols.
• The technical microfiber range associated to the SANIVAP accessories optimizes the performance of the steam system.
