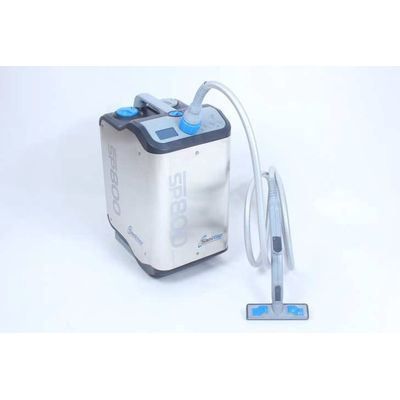

SANIVAP - Model SP800 -Biocleaning Steam System
The SP800 biocleaning steam system ensures the complete cleaning and disinfecting of all kind of surfaces : floors, vertical surfaces, furniture, equipment, medical devices… The constant steam quality of the SP800 ensures its effectiveness in terms of cleanliness and disinfection. The SP800 is especially designed for intensive use up to 8 hours per day. The SP800 steam system is ergonomic, easy to operate and very suitable for daily usage in accordance with SANIVAP protocols. Additional water can be injected in the steam flow. A suction optional function is available. The wide range of adaptable accessories contributes to its effectiveness and versatility.
Boiler
- capacity 3.1 L
- material / quality stainless steel 316L
- steam pressure 5,5 bars
- steam temperature 160°C
- self-filling device yes
- steam outflow 0 à 90 g/mn
Electric power
- voltage 230v – 50/60Hz
- boiler 3350w
- internal, dismountable and anti-corrosion resistance
- total power 3450w
Tanks capacity
- water tank for steam production 8 L
- Water tank for injection water 6 L
- filter on steam output yes
Electric protection
- product IP 44
- waterproof electronic and electric box IP 56
Weight / size
- steam hose professional 4,5 m
- electric cable in neoprene 10 m
- product 25 Kg
- size L 42 x l 30 x h 58 cm
Homologation / certifications
- CE medical devices LNE 0459
- SANIVAP is certified : ISO 13485
Warranty : 1 year (parts / labour and transportation cost or local repair by accredited technician)
Boiler warranty : 3 years according to Sanivap warranty conditions
Conception of the boiler
- Internal, dismountable and anti-corrosion résistance
- Quality material (316L austenitic stainless steel)
- Self filling magnetic system
- High boiler insulation
- Optimized performance ratios of the boiler : power / pressure / steam outflow
Conception of fluid circuits
- Electronic monitoring of steam pressure and
- temperature to secure disinfection efficacy.
- Steam output regulation – 6 levels
- Additional water injection in steam outflow
- Steam stainless steel filter protecting electro valve
- Self-filling magnetic contactor
- Filter on water tank and injection water
- Easy drain of the boiler with safety valve
- Easy drain of boiler water and injection water tanks
Quality of material
- Structure and components in stainless steel , ABS, Aluminium
- Stainless steel boiler 18/10 quality AISI 316L
- Wheels high quality standard
Safety
- Hand contactor on steam handle
- Device fully protected - IP 44
- Electric and electronic box waterproof - IP 56
- Neoprene electric cable 10m (3x2.5mm)
- Alarm : lack of water for boiler supply
- Alarm : lack of injection water
- Lack of water security for boiler protection
Ergonomics
- Ergonomic hand contactor on steam handle
- Ergonomic steam handle
- Easy accessories connexion
- Easy draining and steam cleaning of water tanks
- Range of ergonomic accessories
- Ergonomic steam biocleaning trolley
- LCD control screen for operator (steam output, water level in water tanks…)
PROTOCOLS AND TRAINING
- Training provided for use of the steam system and its regular maintenance
- Suitable protocols at disposal
TECHNICAL ASSISTANCE
- Technical assistance to the users for an optimal use of the steam system
- Availability of maintenance contracts
- After Sales Service provided by accredited national network
ACCESSORIES RANGE
- The SANIVAP long experience has enabled to develop a wide range of ergonomic accessories suitable for cleaning and disinfecting protocols.
- The technical microfiber range associated to the SANIVAP accessories optimizes the performance of the steam system.
