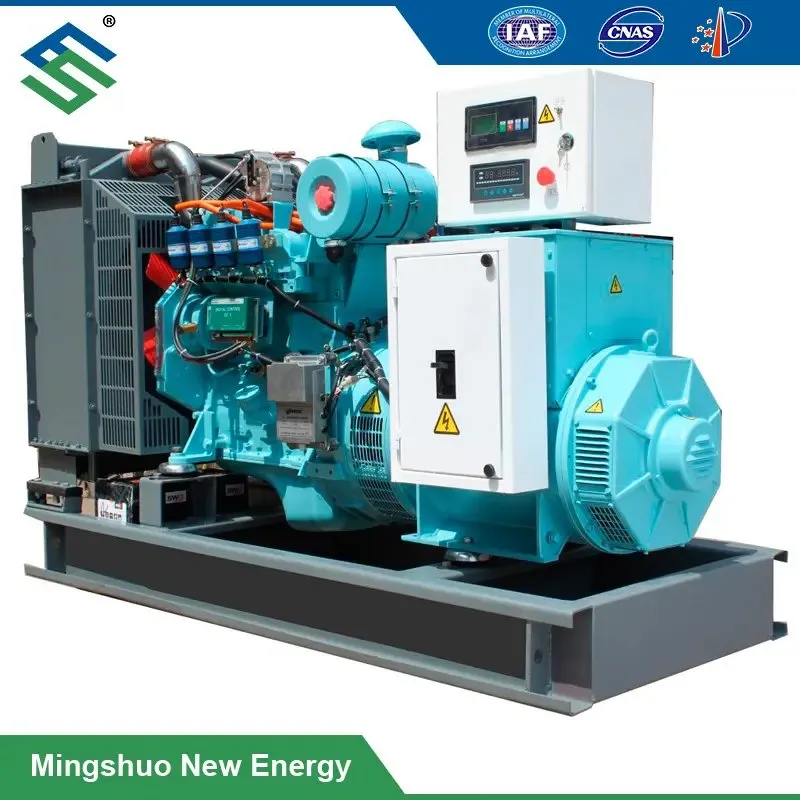

Mingshuo - Model HF200NG - Biogas Power Generator
Biogas power generation is a new technology of energy comprehensive utilization which integrates environmental protection and energy saving. Biogas originated from anaerobic fermentation of massive industrial and agricultural organic waste (such as alcholo solution, livestock manure, city garbage and sewage) can be transformed into electricity. The residual heat can be reused for the production of biogas thus the comprehensive thermal efficiency can reach more than 80%, much higher than those of general power generators. The economic benefits are quite considerable.
Most popular related searches
biogas power generation
power generation
biogas power
biogas generation
biogas generator
biogas
gas generator set
energy saving
gas engine
biogas plant
- Gas Genset model HF200NG
- Rated power(kw/kva) 200/250
- Gas Engine model 12V138QI
- Rated power(kw/kva) 230/287.5
- BorexStroke(mm) 138*150
- Rated speed (rpm) 1500
- Starting system Electric starting(DC24V )
- Governing method Electrical
- Cooling system Closed water-cooled
- No of cylinder 12 cylinders in-line
- Inspiration method Turbo-charged
- Gas consumption(m3/kw.h) 0.32
- Alternator model Stamford/Marathon/other
- Excitation mode brushless
- Insulation class H
- Protection class IP23
- Factor 0.8 Lagging
- Phase/Wires 3 phase 4 wire
- Overall dimention(LxWxH) 3250x1450x2100mm
