Yuji - Model DZL - Biomass Fired Chain Grate Steam Boiler
Biomass Fired Chain Grate Steam Boiler is designed as single-drum boilers with fire tubes and water tubes. It has the characteristics of fast heat conduction, quick steam pressure rise, strong adaptability to biomass fuel, compact structure and high thermal efficiency. It adopts new thermal insulation materials, with less heat loss and good thermal insulation performance. It has a built-in limit low water level sensing safety device, which can directly detect the water level in the boiler. This boiler can be your most economical and practical choice.

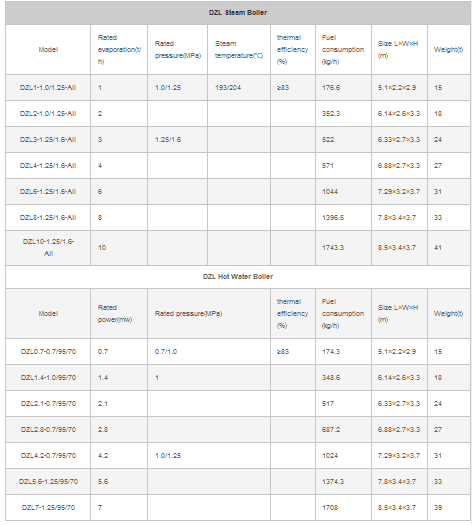

- Model: DZL Series
- Steam Capacity: 1T/ H-25T / H
- Steam Pressure: 0.7Mpa-2.5Mpa (Optional as required)
- Fuel: Sawdust, Biomass Pallet, Rice Husks, Peanut Shells, Palm Shells, Coconut Shells, Corncobs, Bagasse, Bamboo Chips, Straw and Other Solid fuel For Crops.
- Application: Chemical factory, sugar factory, pharmaceutical factory, textile factory, printing and dyeing factory, food factory, paper factory, clothing factory, fertilizer factory, feed factory, rubber factory, cement factory, washing factory, hospital, hotel, etc.
Biomass Fired Chain Grate Steam Boiler adopts the latest science and technology, such as arched tube plate and threaded flue smoke pipes, which effectively improve the overall efficiency of the boiler and prevent the occurrence of faults including grate coking and tube plate leakage. The combustion chamber furnace arch can be tailor-made according to different shapes of fuel, achieving sufficient combustion and less air pollutants. Its advantages include high steam quality, strong adaptability to load changes, and large steam space volume. This Biomass Fired Chain Grate Steam Boiler also has easy installation and maintenance, able to provide you more reliable and consistent performance.
