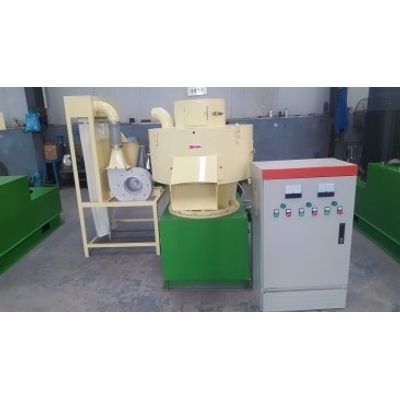

Fada Pellet - Model FD Series -Biomass Sawdust/Straw Pellet Machine

Advantages of double vertical ring die pellet machine:

1. Gearbox: Continue the gearbox advantages of our company's three-generation flat die granulator, adopt high-precision gear transmission, equipped with automatic hydraulic circulating oil system, to ensure the service life of the gearbox and the working stability of the granulator.
2. Vertical motor: 8-level motor, working vertically. Its outstanding feature is that the mounting hole is centered on the output shaft and is equidistantly distributed around, so that the machine runs with greater power and stability.
3. Fan system: located on the side of the working chamber of the particle machine, which can freely control its working time. Its main function is to help the particle machine to remove dust and discharge steam in the working chamber.
4. Working parts: mold and pressure roller are made of alloy steel material, heat treatment processing by the company independently completed, hardness up52Above, it not only ensures the granulation effect, but also enhances the service life. The working mode is the inside-out extrusion type, and the centrifugal force and extrusion pressure are combined to increase the output while ensuring the hardness and density of the particles. 3-8The unique design of the press roller increases the extrusion frequency and the output. The mold is a "vertical double-layer" design. The same aperture can be used up and down to increase the service life of the working parts. Two different aperture molds can also be used, thus saving the cost of purchasing additional molds for making particles of different sizes.
5. Pressure roller automatic oiling system: oiling time and working time can be controlled freely, oiling frequency can be adjusted freely according to the working time, so that the machine can work 24 hours without stopping, and avoid the time and labor cost consumption of stopping oiling. Greatly improve the work efficiency.
