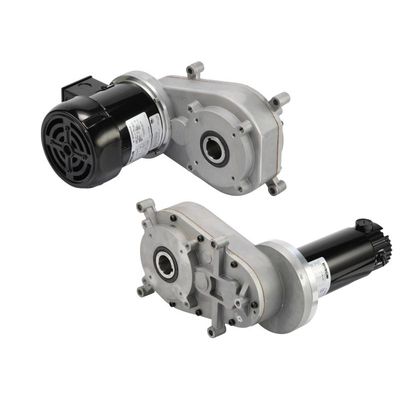

Bison - Model 762 Series - Offset Parallel Shaft Gearmotors
The Bison 762 Series Offset Parallel Shaft Gearmotors are engineered for applications requiring reliable power transmission with customizable features to meet diverse industrial needs. These gearmotors are designed with a focus on high torque output and continuous duty, making them suitable for demanding environments. Manufactured in the USA, the 762 Series integrates seamlessly into various systems, providing robust performance and durability. Bison’s engineering team offers extensive design expertise and integration support, ensuring the gearmotors align with specific application requirements. The motors are versatile, finding usage across a range of markets and applications, thereby enhancing operational efficiencies. As a technology partner, Bison excels in solving complex challenges, offering tailored solutions to optimize the performance of mechanical systems.
6-12 RPM · 1075-2020 in-lbs · 1/4 HP · AC & DC options available
Motor Specifications
- Enclosure: TENV
- Insulation: Class B Minimum (AC), Class F (DC)
- Bearings: Ball
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC
Gearhead Specifications
- Finish: Unpainted
- Mounting: Shaft Mount, Base Moung, or Face Mount Any Angle
- Shafts: Hardened Steel
- Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings
- Lubrication: Grease
- Housing: Precision Machined Die Cast Aluminum
- Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
- Duty Rating: Continuous
