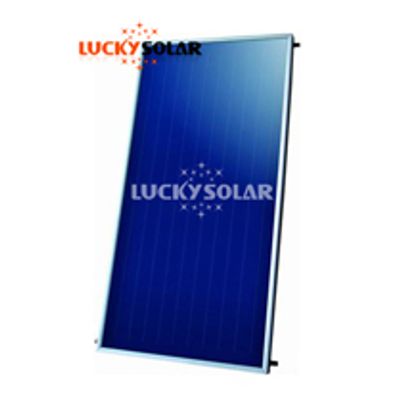

Bluetec
From Flat Panel Solar Collector
Imported Bluetec Heat Absorbing Coat, Gathering Energy WisdomBluetec heat absorbing board, imported from Germany, with magnetron sputtering technology. The surface is coated with gradient-changed multilayer(AI-N/AI), which leads to the good spectral selectivity and the extremely high thermal efficiency. Top Level Heat Efficiency, Enjoy Warmth from SunshineSolar absorption rate reaches 92%, emissivity is only 8%, energy saving and low carbon release to make comfortable enjoyment.
-
Most popular related searches
Product Parameter
- Absorber paint layer material: Bluetec collector
- Absorber materials: 0.2/0.3 mm Copper plate or 0.2/0.3 mm Aluminum plate
- Area of heat collector: 2/2.42 sq m
- Effective area of heat collecting: 1.83/2.18 sq m
- Liquid capacity of heat collector: 1.4/2.1 L
- Glass thickness: 3.2/4 mm
- Maximum operating pressure: 6 Bar
- Maximum testing pressure: 15 Bar
- Wide open temperature: 200 °C
- Weight: 42kg
- Size Dimension: 2000 x 1000 x 80(mm)/2200 x 1100 x 94(mm)
