NGI - Model N9000 Series - BMS Testing Modular Battery Simulator
The N9000 series is an advanced, high-performance measurement and control platform designed for real-time, synchronous, and high-power testing applications. Featuring a robust 4U height and 19-inch width chassis, it supports a range of modules including battery simulation, programmable resistance, and high-voltage power supplies. The platform can accommodate up to 10 slots for various measurement and control modules, ensuring electrical isolation between them. It offers both local and remote control capabilities with a synchronous trigger function, making it ideal for multi-module, high-speed, and high-integrity automated testing scenarios. The NB101 series offers a dual-quadrant programmable battery simulation module with exceptional voltage and current measurement accuracy. Similarly, the NB102 series provides high-precision, multi-channel programmable resistance modules. The system supports sophisticated communication protocols such as LAN and CANFD, and allows DBC file imports. This flexibility and precision make it suitable for extensive applications in energy storage BMS, automotive BMS, AFE chip testing, and more, addressing industry demands for high-precision testing.

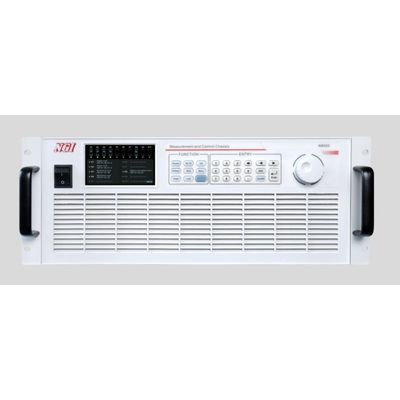

N9000 series is a high real-time, high-synchronous, high-power measurement and control platform, consisting of N9000 measurement and control chassis and a variety of modules. N9000 is a standard chassis with 4U height and 19-inch width, support for the insertion of battery analogue modules, programmable resistance modules, high-voltage power supply modules and other types, the chassis can be integrated into 10 slot measurement and control modules, electrical isolation of the modules. N9000 series supports local/remote control and synchronous trigger function, which can realize multi-module high-speed synchronous control, and is widely applicable to multi-channel, high-integrity, high-power automated test and measurement scenarios.
The NB101 series is a high-precision, dual-quadrant programmable battery simulation module that supports voltage accuracy up to 0.1mV and μA-level current measurement. It is equipped with various test functions such as power mode, SOC simulation, sequence test, graph and fault simulation. It can meet the requirements of BMS HIL test system, AFE chip, energy storage, electric vehicle, electric two-wheeler/tricycle, base station power supply, and other multi-scenario BMS test applications.
NB102 series is a high-precision, multi-channel programmable resistance module, resistance range: 0Ω~11.11MΩ, programming accuracy up to 0.1%. The flexible design supports 12/24/36 channels with a resolution up to 1Ω, which can be widely used in simulation test scenarios such as NTC resistors and resistive sensors.
- Energy storage BMS
- Automotive BMS
- AFE/BMS chip
- BMS HIL testing
Modular design for convenient operation and flexible expansion
The N9000 series is a multi-channel modular measurement and control platform. The standard chassis can integrate 36 channels of single cell simulation, 36 channels of battery failure simulation and 36 channels of temperature simulation, which effectively saves users' space. Single module with 4 channels for battery simulation, single module with 12/24/36 channels optional for temperature simulation. With multiple models, users can choose products according to the actual needs, which is convenient for subsequent expansion.
High speed response, high speed synchronization, high throughput data
As a high real-time, high-synchronous measurement and control platform, the N9000 series supports Gigabit LAN and CANFD communication, hardware synchronous triggering and high-speed synchronous clocks, with command response speed of ≤1ms and multi-channel synchronization of ≤200μs, which is particularly suitable for high-speed simulation test such as BMS HIL.
High precision, matching BMS and AFE chip trends
AFE chip is the core component of BMS, with the management getting more and more refined, the voltage acquisition accuracy of AFE chip and BMS is getting higher and higher. NGI has launched 0.1mV ultra-high precision battery simulator since 2016, which has been widely recognized by the industry and become the first choice for AFE chip testing. The modular battery simulator launched under the N9000 measurement and control platform supports 0.1mV and 0.5mV voltage accuracy, which can meet the industry's high-precision testing needs.
- High speed response, high speed synchronization, high-power measurement and control chassis
- Various modules such as battery simulation, temperature simulation, programmable power supply, etc.
- 36 channels of single cell simulation, voltage accuracy up to 0.5mV
- 36 channels of temperature simulation, the resolution 1Ω
- 36 channels of fault simulation, μA-level current measurement
- Support LAN, CANFD communication control, LAN dual interface
- Support DBC file import
