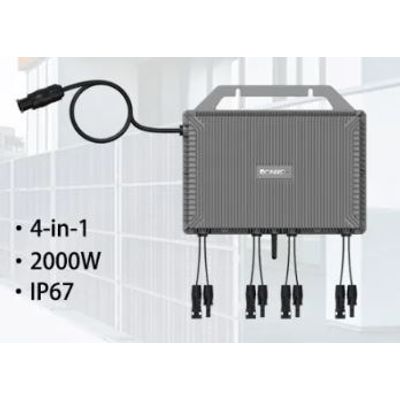

Bonnen Battery - Solar Micro Inverter with 4-in-1 Design, 2000W

SHARE

The Bonnen Micro Inverter 4-in-1 2000W is an innovative solution for photovoltaic systems, designed to enhance energy conversion and management. This advanced micro inverter integrates four critical functions into a compact unit, optimizing installation processes and system costs while boosting efficiency. Suitable for residential, commercial, and industrial applications, it incorporates state-of-the-art technology that maximizes energy output and ensures reliability and safety. The inverter features independent Maximum Power Point Tracking (MPPT) control, real-time data monitoring, and reactive power compensation, offering enhanced flexibility in variable conditions. With a high conversion efficiency of 96.5% and a robust IP67-rated design for secure operation in harsh environments, it is equipped with advanced protection mechanisms, supporting optimal solar module performance. Compatible with 60 and 72 cell PV modules, and supporting versatile installation needs, this inverter presents a reliable and adaptable choice for modern energy requirements.

Most popular related searches
microinverter
solar energy system
solar energy
photovoltaic module
solar inverter
energy conversion
solar panel
energy production
inverter
photovoltaic system engineering

Bonnen Micro Inverter 4-in-1 2000W is a cutting-edge solar inverter that revolutionizes energy conversion and management in photovoltaic (PV) systems. This advanced inverter integrates four essential functions into one compact unit, streamlining installation, reducing costs, and enhancing overall system efficiency. Designed for a wide range of applications, the Micro Inverter 4-in-1 2000W is the ideal choice for residential, commercial, and industrial solar energy systems.

By utilizing state-of-the-art technology, this micro inverter not only maximizes energy output but also ensures long-term reliability and safety. Its robust design, combined with features like independent Maximum Power Point Tracking (MPPT) control and real-time data monitoring, makes it a powerful and flexible solution for today’s energy needs.



  • 4-in-1 Integrated Design: The unique 4-in-1 design consolidates multiple functionalities into a single unit. This reduces the need for additional components, minimizing both space and installation costs, while simplifying system management.

  • High Conversion Efficiency: The inverter achieves a peak efficiency of 96.5%, ensuring that the maximum possible energy is harvested from your PV modules. This high efficiency translates directly into lower energy costs and a shorter payback period.

  • Advanced Protection Mechanisms: Safety is paramount, and the Micro Inverter 4-in-1 2000W is equipped with comprehensive protection features. These include over-voltage, over-current, short-circuit, and anti-islanding protections, all of which safeguard the system against potential faults and ensure reliable operation.

  • Wide MPPT Voltage Range: With a Maximum Power Point Tracking (MPPT) voltage range of 25V to 55V, the inverter is highly adaptable to different PV modules. This flexibility allows it to efficiently manage energy conversion across a variety of solar panel types and configurations.

  • Independent MPPT Control for Each Input: Each input on the inverter is controlled independently, allowing for higher power generation. This feature is particularly beneficial in scenarios where PV modules are subject to partial shading or varying sun exposure, as it optimizes the energy yield from each module.

  • Real-Time Data Monitoring: The inverter offers continuous, real-time monitoring of the system’s operation status. This feature not only helps in maintaining optimal performance but also aids in quick diagnostics and troubleshooting, reducing downtime and maintenance costs.

  • Reactive Power Compensation: Equipped with a reactive power compensation function, the inverter can be easily configured to support grid stability. This feature allows for flexible switching on/off and setting multiple compensation modes, improving overall system efficiency and compatibility with grid requirements.

  • Easy Plug-and-Play Installation: Installation is straightforward with the plug-and-play setup, which minimizes installation time and labor costs. This makes the inverter an ideal choice for both professional installers and DIY enthusiasts.

  • IP67 Ingress Protection: The inverter is built to withstand harsh environmental conditions, with an IP67 rating that offers superior protection against dust and water ingress. This level of durability ensures reliable operation even in challenging outdoor environments.

  • 10-Year Warranty for Peace of Mind: To underscore its reliability and quality, the Micro Inverter 4-in-1 2000W comes with a comprehensive 10-year warranty. This long-term coverage provides assurance and security for your investment.

  • Maximum Input Voltage (V) : 60
  • Commonly Used Module Power (W) : 210~600
  • MPPT Voltage Range (V) : 25~55
  • Number of MPPTs : 4
  • Number of Inputs per MPPT : 1
  • Maximum Input Current (A) : 13 * 4
  • Maximum Input Short Circuit Current (A) : 19.5 * 4
  • Rated Output Power (VA) : 2000
  • Rated Output Current (A) : 8.7
  • Nominal Output Voltage Range (V) : 230 (0.85Un~1.1Un)
  • Nominal Frequency/Range (Hz) : 50 (47-52）or 60( 57-52) or 60 (5762)
  • Power Factor : >0.99 (default)
  • Power Factor (Adjustable) : 0.95 leading to 0.95 lagging
  • Total Harmonic Distortion : <3%
  • Maximum Output Overcurrent Protection (A) : 7.7
  • CEC Peak Efficiency : 96.50%
  • CEC Weighted Efficiency : 95%
  • Nominal MPPT Efficiency : 99%
  • Nighttime Power Consumption (mW) : <50
  • Ambient Temperature (°C) : -40~+65
  • Dimensions WHD (mm) : 344 × 234 × 41.5
  • Weight (kg) : 6.4
  • Ingress Protection : IP67
  • Protective Class : Class I
  • Cooling Method : Natural convection (No fans)
  • Communication Interface : WiFi
  • Compatibility : Compatible with 60, 72 cell PV modules
  • Compliance Standards : EN50549-1:2019, VDE 0124:2020, VDE4105:2018, EN 62109-1:2010, EN62109-2:2011, IEC61000-6-3:2021, IEC61000-6-1:2019

The Micro Inverter 4-in-1 2000W offers numerous benefits that make it an exceptional choice for solar energy systems:

  • Reduced Costs: The integrated design reduces the number of components required, leading to lower upfront costs and simplified system management. The high efficiency further contributes to cost savings by maximizing the energy harvested from your solar panels.
  • Optimized Energy Production: With independent MPPT control and a wide MPPT voltage range, the inverter ensures that each solar module operates at its optimal power point, even in less-than-ideal conditions. This results in higher overall energy production.
  • Enhanced Safety and Reliability: The inclusion of multiple protection mechanisms guarantees safe operation under various conditions. The IP67 rating and robust build quality ensure that the inverter can endure extreme environmental factors, providing consistent performance over time.
  • Flexibility and Compatibility: The inverter’s wide operating voltage range and compatibility with 60 and 72 cell PV modules make it a versatile solution for various installations. Whether you’re upgrading an existing system or installing a new one, this inverter can adapt to your needs.
  • User-Friendly Operation: The plug-and-play design, combined with real-time monitoring and easy-to-use controls, makes the Micro Inverter 4-in-1 2000W incredibly user-friendly. It simplifies installation, operation, and maintenance, allowing you to focus on harnessing solar energy without technical hassles.
  • Long-Term Investment Security: The 10-year warranty and robust design offer long-term reliability, ensuring that your solar energy system continues to perform optimally for years to come.

The Micro Inverter 4-in-1 2000W is versatile enough to be used in a variety of solar energy applications:

  • Residential Installations: Ideal for homeowners looking to maximize the efficiency and output of their rooftop solar panels. Its ease of installation and low maintenance make it perfect for residential settings.
  • Commercial Buildings: For businesses aiming to reduce energy costs and increase sustainability, this inverter provides a reliable and efficient solution. Its high power output and compatibility with different PV modules make it suitable for commercial rooftops and ground-mounted systems.
  • Industrial Use: In large-scale industrial solar projects, where reliability and performance are critical, the Micro Inverter 4-in-1 2000W delivers consistent power conversion and robust protection features, ensuring uninterrupted operation.
  • Remote and Off-Grid Locations: The inverter’s durability and high protection rating make it well-suited for remote or off-grid installations where environmental conditions may be more challenging.

Opting for BONNEN’s Micro Inverter 4-in-1 2000W means selecting a product that embodies the pinnacle of modern solar technology. It offers unparalleled efficiency, robust protection, and user-friendly features, making it a versatile and reliable choice for a variety of solar applications. With its advanced MPPT technology, weatherproof design, and comprehensive warranty, BONNEN’s inverter ensures that your solar energy system operates at peak performance for years to come. Investing in this inverter not only provides immediate benefits in terms of energy production and cost savings but also ensures long-term reliability and support, making it a sound choice for any solar energy project.
