Bowers -Â Model XT -Holematic Groove Sets
The XT Groove sets are based on the standard self-aligning 3-point XT head design but with a stepped anvil to allow entry into grooved for fast and repeatable groove diameter measurement. The gauge is set using the calibrated setting rings provided and each ring size is stored in the gauge memory enabling quick and easy setting with each head change. The trigger action pistol-grip controller enables the operator to retract the anvils instantly and pass the gauge through the entry diameter, then extend the anvils to engage with the groove diameter for an immediate absolute measurement. Other versions of the standard XT head are also available for internal threads, splines, slots, deep hole and many more applications.
- Available from 6-300mm diameter
- 2 Point (ovality) or 3 Point available
- Interchangeable with standard heads
- XTD, XTH, & Ultima available
- Suitable for special forms, Radius, Ball Race, Brake Caliper, Blind Bore, Annular
- Depth stops & guide sleeves available for quick, accurate location
Each of these application heads can be fitted directly to our XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results.

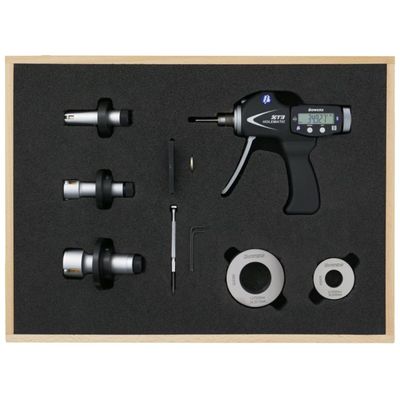

STANDARD XT HOLEMATIC GROOVE SETSNow available as stocked items, features of the standard XT groove sets include:
- Generic anvil profile suits common groove sizes
- Sets available to cover diameters 6 – 100mm (1/4” – 4”)
- 3-point, self-centring, interchangeable heads for repeatability
- 0.001mm 0.00005” resolution
- Depth stops included
- Extensions available
- IP67 sealed
- Setting rings with UKAS certificates included
- Bluetooth with free data collection App
