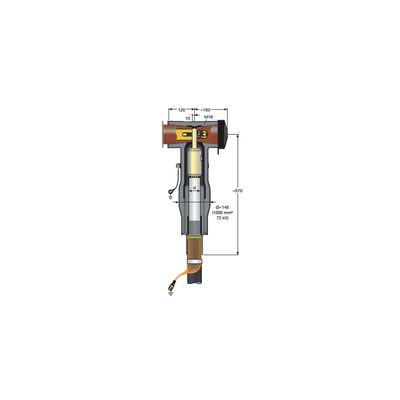

NKT - Model CB 72 - Branch Connector

NKT - Model CB 72 -Branch Connector

The branch connector type CB 72 is applicable to the outer cone bushing type F of GIS and transformers and is suitable for XLPE- and EPR-insulated cables with Al or Cu conductors.

Most popular related searches

wind power

high voltage power

high-power application

Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm
Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 14 kg
Operating voltage Ur: 72 kV
Product type: Branch
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point
