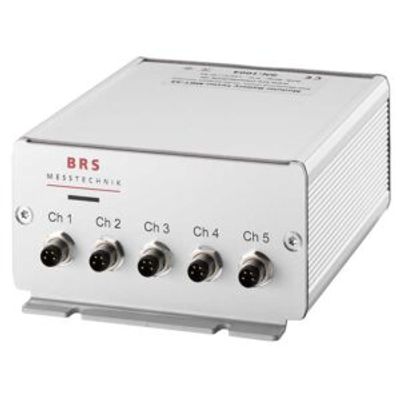

BRS - Model MBT-X5 -5-Channel Measuring Device For Fast Cell Input Tests
The MBT-X5 was developed for the input test (BoL test) of round cells in large quantities with short cycle times. The device measures the voltage and the internal resistance at different frequencies with up to 5 channels.
Most popular related searches
Different measurement types allow adaptation to different requirements:
- Quick test in 100ms per channel
- Standard test in 350ms per channel
- DC-IR test in 1.3s per channel
The compact measuring module is protected by an aluminum housing that can be attached with 4 screws. The measuring inputs are made via M8 sensor connectors, the measuring module is connected to the system control (PLC) via a serial interface (RS232). The device can be configured and diagnosed via the USB interface. Power is supplied via a separate power supply unit.
