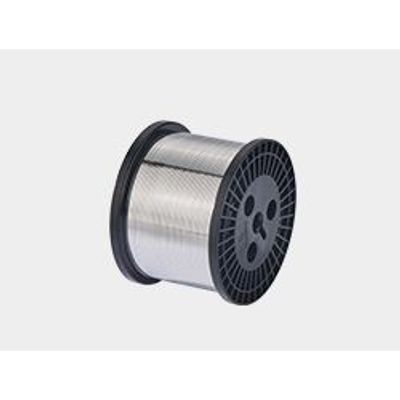

BRUKER-SPALECK - Aluminum Flat Wire

Basic Material Aluminum

• In accordance to DIN EN 573-3:2009-08

Pure Aluminium

• Al 99,5 (EN AW-1050A)
• Al 99,7 (EN AW-1070A)
• Al 99,9 (EN AW-1090)
• More Al-materials are available by inquiry

Dimensions

• Thickness from 0.050 to 1.200 mm
• Width from 0.200 to 6.000 mm

Designs

• Additional application-optimized strengths to your specifications available
• Edge shape: Milled round

Features

• Geometrical and mechanical values are reviewed and documented according to your requirements
• Tightest tolerances in terms of thickness and width
• Resistance measurement to defined specifications
• Manufactured to your customized specifications

Applications
Flat wire for:

• automotive applications
• flat cable (FFC)
• cable
• photovoltaic modules / flat wire for solar modules
