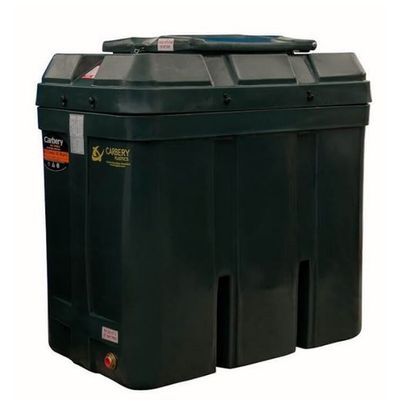

Carbery - Model Combi R -BTGR00650 -Bunded Heating Oil Tank
Carbery Bunded Tanks consist of a ‘tank within a tank’. Fuel is stored in the inner tank, whilst the outer tank acts as a failsafe in case of a spill, significantly reducing the risk of an environmental pollution incident. In Ireland and the UK, Bunded Tanks are today a requirement at all commercial, industrial and institutional installations, as well as most domestic and agricultural installations too.
Equipment Specification
This Bunded Oil Tank is supplied complete with the following equipment as standard:
- 2” lockable, oil tank fill point
- 5” lockable oil tank inspection point
- 2” dia. fuel tank vent
- Lockable access lid
- 32mm. dia. electronic gauge point
- Tank Contents Dipstick
- 1” dia. BSP bottom outlet.
Optional Equipment
The following items can be specified upon request and at additional cost:
- Carbery Valuepack Oil Tank Fitting Kit
- Carbery Ultrapack Oil Tank fitting Kit with Apollo Ultrasonic Contents Gauge
- Carbery Smartpack Oil Tank Fitting Kit with Apollo Smart Heating Oil Energy Monitor
Warranty
All Carbery Bunded Heating Oil Tanks are supplied complete with a conditional, 10-year warranty against manufacturing, material and design defect.
- Length 1,200 mm
- Width 750 mm
- Height 1,240 mm
- Weight 78 kg
- Nominal Capacity* 611 Litres
- Brimful Capacity 643 litres
- Fill Point Diameter 121mm (5″)
- Outlet Diameter 25.4mm (1”) BSP
- Outlet Position Bottom
- OFCERT License Number 0654071501
- EN13341 Compliant? Yes
- *Nominal capacity denotes 95% of brimful volume as per EN 13341.
