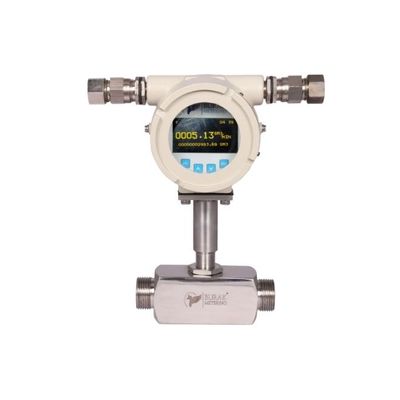

Burak - LPG Gas Flow Meter
Burak’sLPG gas flow meterworks by the thermal dispersion method and uses a constant measuring technique. Because it has no rotating or moving mechanism the pressure drop is almost negligible.
We`ve developed a mass flow meter alongside Bright OLED display for flow and cumulative flow, selection of the various gas composition of biogas, 4-20 mA output, RS485, data logging facility, alongside hazardous area certification.
We also offer a web monitoring solution which is a simple and effective way to manage and improve your operations plant.
Each flow meter is calibrated at the factory.BURAK Meteringis a manufacturer, supplier, and exporter of LPG gas flow meters in India.
There are numerous applications where LPG gas flow usage needs to be determined; few applications are sub-metering, combustion control for commercial users.
LPG is a mixture of propane and butane gas. As we are all becoming more aware of energy consumption and by improving the efficiency of combustion processes using accurate energy of Flue to Air ratio, manufacturers can gain vast strength financial savings, enhance productivity, competitiveness, and profitable operation of fired heaters, boilers, furnaces, and similar fuel burning processes.
There are various technologies available to measure the flow of LPG gas. Lpg gas flow meter price is based on the technology and accuracy of the meter. The latest technology to measure the flow of LPG gas is thermal mass flow meter. It measures the direct mass flow of gas and does not require separate temperature or pressure transmitters, has no moving parts, is highly accurate and repeatable, and has negligible pressure drop. Some industries use propane gas instead of lpg for the combustion process. Burak metering also offers propane gas flow meter based on thermal dispersion technology.
LPG gas flow meter supplied by us include a sensor with integral transmitter i.e. meter electronics is explosion-proof by statutory authority suitable for the required hazardous area as per lS/lEC 60079-0: 2004, lS/lEC 60079.1: 2007 with PESO Certified.
LPG gas mass flow meter has an inbuilt illuminated graphical OLED display for local indicators indicating flow rate and cumulative reading of gas in kilograms per hour (Kg/h). Lpg mass flow meter has advanced digital signal processing of RS485 Modbus communication to connect with the PLC system. It also has an optional inbuilt data storage facility that can be extracted through the USB port on the flow meter. Remote Indication design is available for difficult to reach installation spots. Burak metering is the manufacturer, supplier of LPG gas meter in India.
- Large OLED Graphical display to check the mass and volumetric flow of gas
- 4-20 mA analog outputs for flow rate
- RS485-Modbus for network communication
- Inbuilt data storage
- Online Monitoring Device (IoT)
- Insertion or inline mounting styles for installation choices
- All welded SS 316 construction and no moving parts for durability and long life
- Field programmable for flexibility in configuration
- Standard PESO certified explosion proof enclosure
- It measures direct gas mass flow
- Independent of change in pressure, density and viscosity
- Offers higher accuracy
- Negligible pressure drop
- Pressure and temperature compensation not required
- It has no moving parts
- Flow-range adjustment and validation and diagnostics
- computer interface software
