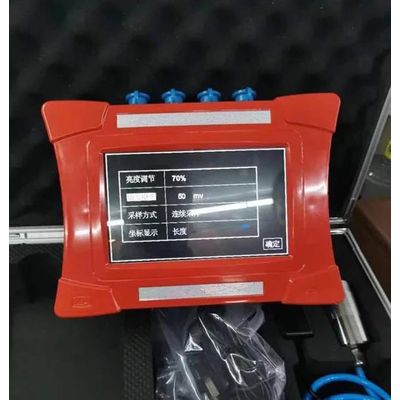

Everstar - Buried Post Column Depth Detector
It is used for measuring the embedded guardrail column post length and depth in soil or concrete. The buried post column depth detector is used for measuring the embedded guardrail column post length and depth in soil or concrete.
Most popular related searches
- Performance
- Display mode: 7.0 inch true color LCD display
- Resolution: 800×600 (backlight adjustable)
- Memory: 8G TF memory card
- Sample length: 8196
- Time resolution: 2us
- AD resolution: 24 bits
- Anchor rod length range: not less than 20m
- Length detection error: ≤1%
- Number of signal channels: 2
- Fixed-point magnification: 1, 10, 100 optional
- Operation mode: photoelectric knob
- Working temperature: -10~+60?
- Dimensions: 255×192×74mm
- Processor: High-performance low-power embedded dual-core processor
- Operating system: Linux system
- Sampling rate: 2us, 5us, 10us optional
- Time indication error: ≤1%
- Amplitude nonlinearity: ≤1%
- Anchor cable length range: not less than 100m
- Data interface: USB2.0 interface, data copy directly
- Channel: ≤3%
- Floating point magnification: 256
- Power supply mode: lithium battery, continuous work for more than 10 hours
- Working humidity: ≤90%RH
- Weight: ≤1.8kg (including lithium battery)
