Urban Solar - Model RMS-F Series -Bus Shelter Lighting System
FromUrban Solar

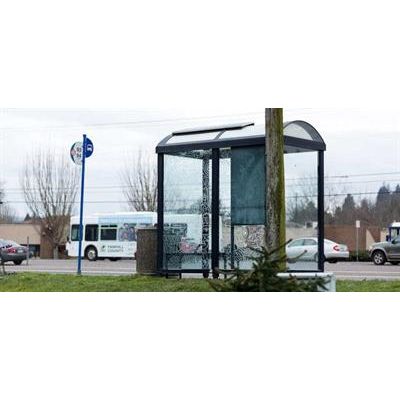

The RMS80F has been enhancing safety at thousands of bus stops across North America for 16 years and counting. Now brighter and more reliable than ever, the RMS80F has a battery enclosure that is installed on the underside of your shelter roof. This configuration keeps batteries cool and allows for easy maintenance. Panels are mounted to the shelter roof using standard brackets that are compatible with any roof type. With rigid and flexible solar arrays ranging from 40W to 120W, the RMS80F can be installed in any location south of Alaska. A single RMS80F system provides bright, uniform lighting coverage for shelter up to 12 feet wide.
Most popular related searches
lighting system
solar array
battery chemistry
battery capacity
flexible solar
solar controller
power grid
solar energy
mounting bracket
urban energy
Safety and security
- Reduces rider pass-bys
- Directly addresses the most common complaint from transit agencies.
- Maximizes security
- Enhances security around transit shelters, contributing to a safer environment.
- UL safety certification
- Independently tested and certified by Underwriters Laboratories (UL) for safety and reliability.
- 10+ year warranty on most components
- Systems are designed to last 10+ years and come with the best warranty in the business including a 5-year prorated battery warranty.
- Proprietary smart controller
- Urban Solar’s Energy Control Module (ECM) maximizes light output throughout the year while ensuring reliability in all weather conditions
- Eco-friendly
- Long-lasting, fully-recyclable batteries eliminate the reliance on grid power.
- Array sizes: 40W-170W solar array options (80W standard)
- Battery capacity: 18Ah to 80Ah, 12.8V
- Battery autonomy: 5 to 10 days
- Battery chemistry: Sealed Lead Acid AGM (LiFeP04 optional)
- Luminaire: 8W
- Controller: Urban Solar ECM™ with real-time clock and low voltage disconnect
- Lighting profile: Fully customizable with real-time clock, dimming and calendar scheduling functionality
- Mounting hardware: Security Torx
- Bracket options: Barrel roof, flat roof, peak roof
- Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F)
- Optional features: USB charging, power for real time signage, ad box lighting.
- Certification: cUL system-level listing
