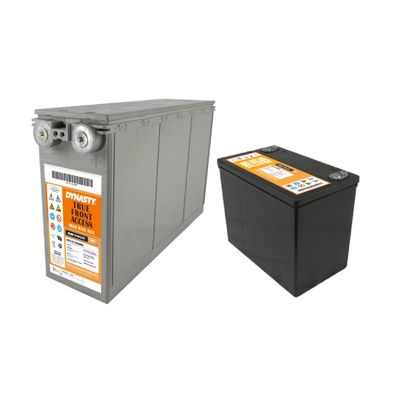

C&D - Model UPS-MR -VRLA AGM Battery

SHARE

C&D Technologies’ UPS High Rate Max batteries provide the constant power backup that UPS systems require. The high energy density and quality designs assure that your business systems run uninterrupted.

Most popular related searches
absorbent glass mat battery
thermal runaway
UPS system
backup power
power generation
backup power system
power plant monitoring
energy regulations
semiconductor

Type:

VRLA AGM

Capacity:

100 - 1000 Watts Per Cell

Design Life:

10 Years

Operating Environment:

Indoor

Outdoor Controlled

  • The UL V-2 Polypropylene case is extremely durable and reduces water loss, especially in batteries which are in service for 5 years or more.
  • Flame retardant polypropylene case and cover compliant with UL94-V2.
  • Patented Long Life Alloy having the lowest calcium levels in the industry – minimizing grid growth, reducing gassing, and extending battery life.
  • Patented UL Recognized Flame-arresting vents in each cell for safety and long life.
  • Designed with the same recombination thermal runaway prevention, gassing and flame-retardant characteristics of the Bellcore 4228 compliant Dynasty Telecom products.
  • Thermally welded case-to-cover bond to eliminate leakage.
  • Can be operated in any orientation. Upright, side or end mounting recommended.
  • Not restrictions for air/surface/water transport
  • Terminal versatility – ease of diagnostic readings with C&D Ohmic Ring®.
  • Reduced headspace driving higher energy density, in cabinet or rack applications
  • True Front Access available: innovative front terminal design maximizing energy density with direct connect extrusion fusion weld technology
  • Larger grid lug – 25% wider
  • Computer generated optimized radial grid design for the most efficient power channeling out of the grid
  • Thicker wires near post to maximize power transfer from active material during high rate discharges
  • Optimized grid alloy for extended life in UPS applications
  • Thin plate design maximizes surface area for higher power density
  • Not restricted for surface transport – Classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189.
  • Not restricted for water transport – Classified as non-hazardous material per IMDG Amendment 27.
Proprietary Technologies
  1. Fixed Orifice Pasting
  2. AGM Glass Mat Technology
Certifications & Compliances
  1. Not restricted for air transport – Complies with IATA/ICAO Special Provisions A67.
  2. Complies with UL1778, 924, 1989 AND 94 V-2, BS6290-4, IEC-896-2.
  3. UL-recognized component.
  1. Data Centers
  2. Network Operations Centers
  3. Industrial Process Control Facilities
  4. Internet Housing Sites
  5. Semiconductor Manufacturing
  6. Banks & Financial Markets
  7. Power Generation Plants
  8. Hospitals & Testing Laboratories
  9. Emergency 911 Response Centers
