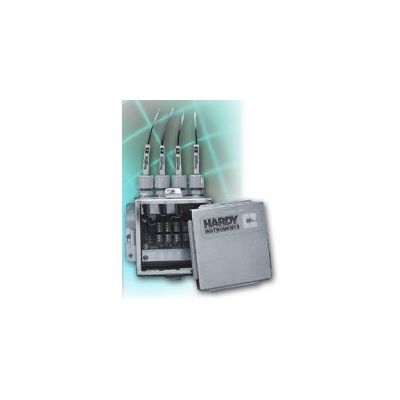

C2 - Standard Junction Box

The Hardy C2 certified Junction Box contains circuitry in a waterproof enclosure which distributes the excitation voltage to up to four load points and transfers each load point’s performance characteristics and weight signals to the weight controller. The box’s unique removable multiple connector design allows for easy isolation and troubleshooting of non-“IT” capable weighing systems. Two junction boxes can be cabled together to handle up to eight load cells from a single scale. Available in NEMA 4 rated painted steel, NEMA 4X rated stainless steel or fiberglass, each box comes with two packaged hole plugs and five cable grip fittings suitable for O.D. cable of 1/4 to 3/8 inches. A label is provided on the underside of the top cover to record load point positions. A non-C2 version with trim pots is also available.
