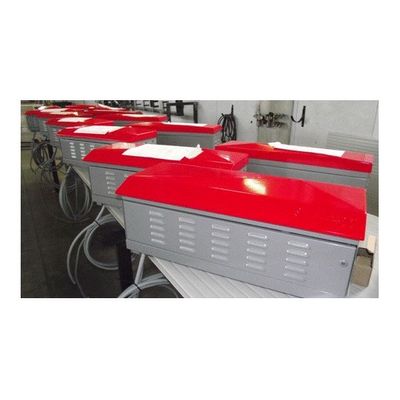

Cometi - Cabinets for VDSL2 Equipment
FromCometi S.p.a.
These kinds of cabinets are used to house VDSL2 equipments and electrical distribution for NGN2 networks. They have a passive cooling system which results to be more productive when heat to be dissipated is very high, when the room temperatures are to be kept very low and when electrical energy is available.
Most popular related searches
The aluminum cabinets with single finned wall, assure passive dissipation of the heat created by the internal equipments and they assure a suitable protection against the solar irradiation. They can be realized in different dimensions according to the applications used and are equipped with:
- max dissipated power from 150 to 400W
- max outside temperature +45°C
- solar irradiation 1120W/m²
- overtemperature of 20°C of max dissipated power
- anti-vandalic structure according to EN 61969-3:2001 and EN 50102:1995 excluded surface finned surface deformation.
- protection level IP 55, according to EN 60529.
- paintied with epoxy coat and refinishing with polyurethane RAL 7035 total dried film >80mµ
- gasket for shutter with electromagnetic shielding according to ETSI 300 019-1-4.
- shutter with covered and removable hinges
- closing system through a rotation handle which starts a three closing point system and with Securvite Telecom key.
- converter AC/DC tipo SDR-480 48V
- optical termination 24G – 2T
- higher solar protection from solar irradation.
- AC/DC Distribution - Louboutin Herre
- Copper bar for equipotential connections.
- Micro-switch o observe the opening of the shutter.
- Thermostat to observe max temperature.
