Visio Cable - Model VCPLab - Cable Measuring Device
FromiiM AG

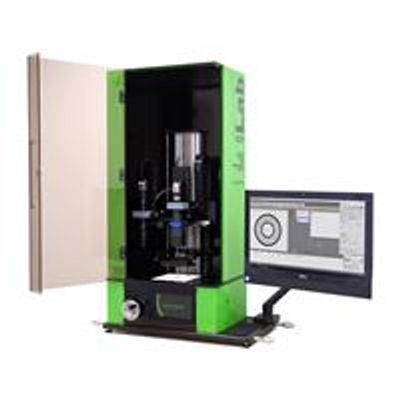

The cable measuring device VCPLab is a camera-based system for measuring cable geometries from insulations and sheaths. Integrated high resolution sensors allow very accurate measurements of both very thin samples with an outer diameter smaller than 1 mm (0.04“) and cable sheaths with an outer diameter up to 40 mm (1.57").
Most popular related searches
- Robust case seals against extraneous light
- Central control unit
- Semi-automatic focussing and illumination
- Safe from impacts and vibrations
- Quasi shadow free transmitted light
- Optimal system status for lighting, optics and camera
- A measurement with 2 cameras is possible
- Adjustable operation distance for 2D measurements in laboratories
- Very precise measurement due to high resolution sensors
- Standardised individual components
- Very easy measuring procedure
- Measurement according to IEC 60811 -201, -202, -203
- Suitable software FMC-3 and CAQ-System ProCable available
- Size (w x l x h) 1150 x 380 x 1070 mm 45.27 x 14.96 x 42.13 Inch
- Weight 75 kg / 165 lbs
- Supply Voltage 100 - 240 V / 50 - 60 Hz
- Input Power max. 100 Watt
- Resolution 4 mm width = 4 μm/Pixel 40 mm width = 6 μm/Pixel
- Lighting LED
- Camera* 1-2 cameras
- Measuring range 0 up to max. 40 mm (1.57“) outer diameter
