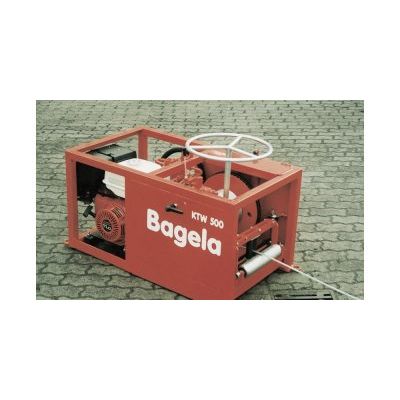

Bagela - Model KTW 500 -Cable Pulling Winch

The cable winch KTW 500 is a universal tool for a wide range of applications. In underground pipe renewal, the winch may be used for pulling and positioning measuring instruments or cameras or for pulling heavy winch ropes into pipes. For cable pulling, the winch may be equipped with a pulling force measuring clockwork. The winch is specially suited for laying light power and control cable on ships, and in industrial power plants. Owing to its compactness and light weight it may be used as part of the outfit of any normal workshop van. The winch is extremely easy to operate. For rope payout, the drum is disengaged from the chain drive. For pulling, the chain drive is re-engaged, the engine is started by hand and the pulling speed is controlled by the hydraulic controll lever, which ensures jerkless pulling. By means of the hand-wheel on top, the rope van easily and neatly be stacked onto the drum during pulling.
